Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
(Refer to Charging System - "AUXILIARY 12V BATTERY ")
Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

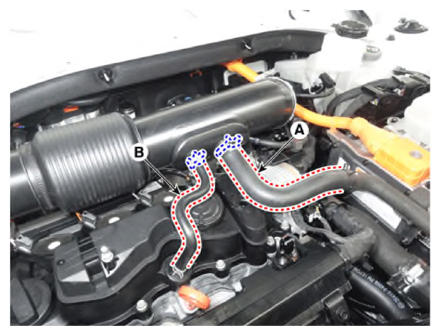

Disconnect the RCV hose (A) and breather hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

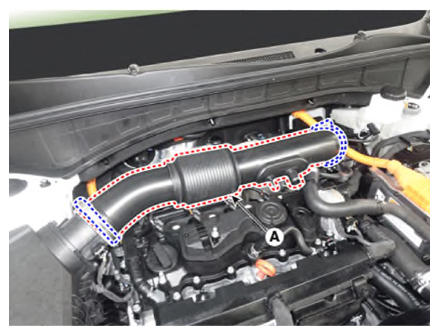

Remove the intake hose (A) after releasing the clamps.
Tightening torque :

4.9 - 6.8 N.m (0.5 - 0.7 kgf.m, 3.7 - 5.0 lb.ft, 43.4 - 60.7 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

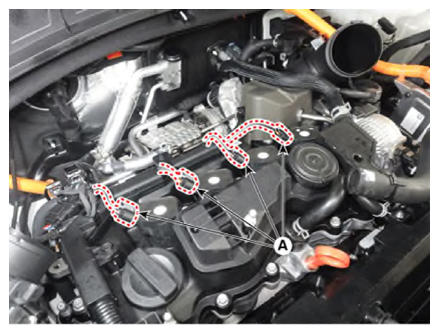

Disconnect the ignition coil connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

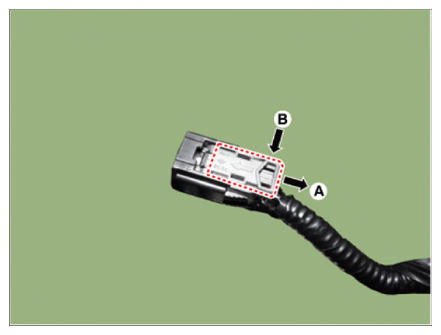

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

Courtesy of KIA MOTORS AMERICA, INC.

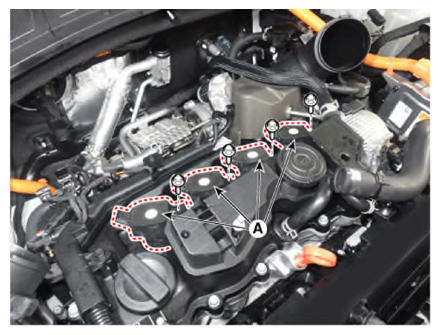

Remove the ignition coil (A) after removing mounting bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 13.3 - 16.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
