Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

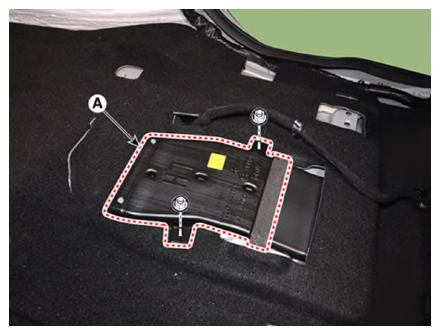

  3. Remove the air duct (A) by removing the mounting nuts.
    G14957095Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the fuel pump service cover (A).
    G14957096Courtesy of KIA MOTORS AMERICA, INC.

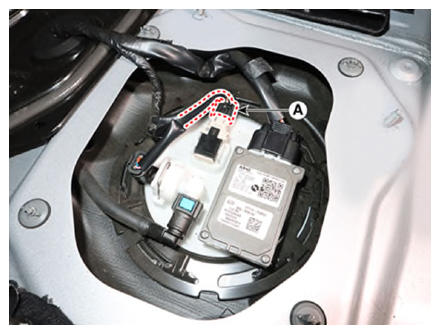

  5. Disconnect the Fuel Tank Pressure Sensor (FTPS) connector (A).
    G14957097Courtesy of KIA MOTORS AMERICA, INC.

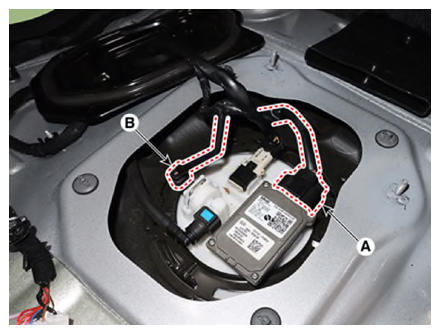

  6. Disconnect the Fuel Pump Control Module (FPCM) connector (A) and Fuel Pressure Sensor (FPS) connector (B).
    G14957098Courtesy of KIA MOTORS AMERICA, INC.

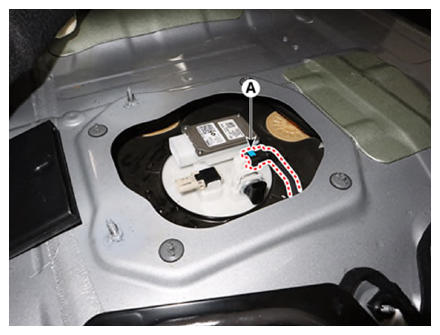

  7. Separate the fuel feed quick-connector (A).
    G14957099Courtesy of KIA MOTORS AMERICA, INC.

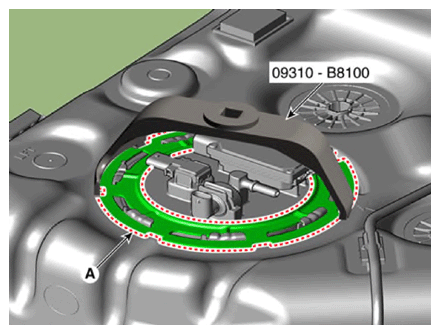

  8. Remove the fuel pump module after removing the plate cover (A) by using a SST (09310 - B8100).
    G14957100Courtesy of KIA MOTORS AMERICA, INC.
