Fuel sender

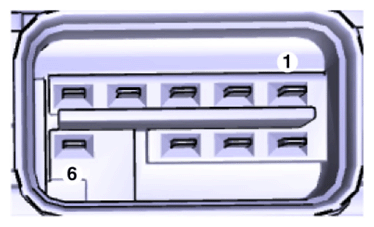

Using an ohmmeter, measure the resistance between terminals 1 and 6 of sender connector at each float level.

G14957094

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
1	Fuel sender (-)
2	Fuel pressure sensor signal
3	Fuel pressure sensor ground
4	Ground
5	CAN_LOW
6	Fuel sender (+)
7	-
8	Fuel pressure sensor (+)
9	CAN_HIGH
10	Battery (+)

Also check that the resistance changes smoothly when the float moves from "E" to "F".

Position	Resistance (Ω)	Capacity [l (U.S gal., U.S.qt., Imp.qt.)]
E	297 - 305	3 (0.79, 3.17, 2.64)
1/2	85.5 ~ 87.5	32.7 (8.64, 34.55, 28.77)
F	14 - 16	65 (17.17, 68.59, 57.19)
