Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Electric Waste Gate Actuator (EWGA) >> Components & Components Location >> Component Location

Component Location

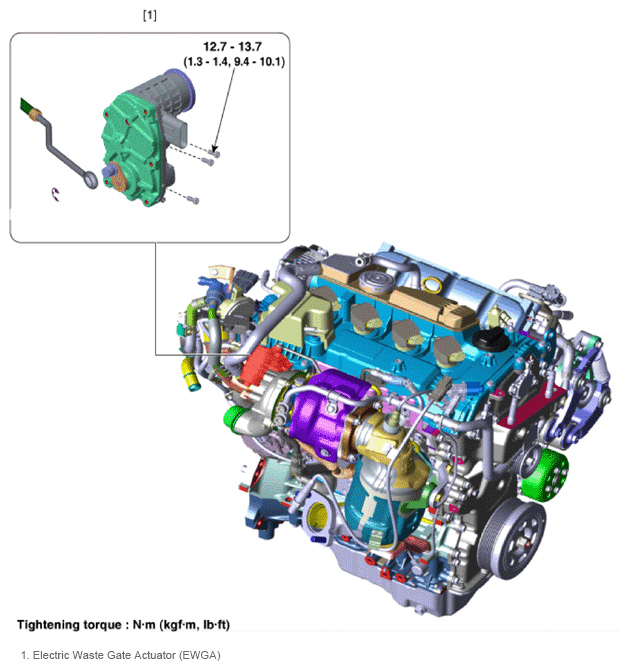

Fig 1: Electric Waste Gate Actuator Components Location With Torque Specification

G14956994

Courtesy of KIA MOTORS AMERICA, INC.
