Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System (PHEV) >> Components & Components Location >> Components

Components & Components Location: Components

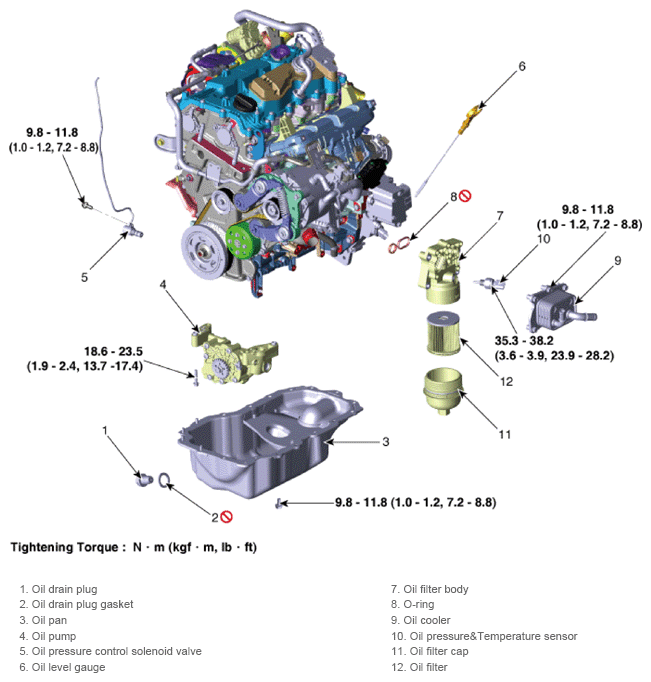

Fig 1: Lubrication System Components Location With Torque Specification

G14937187

Courtesy of KIA MOTORS AMERICA, INC.
