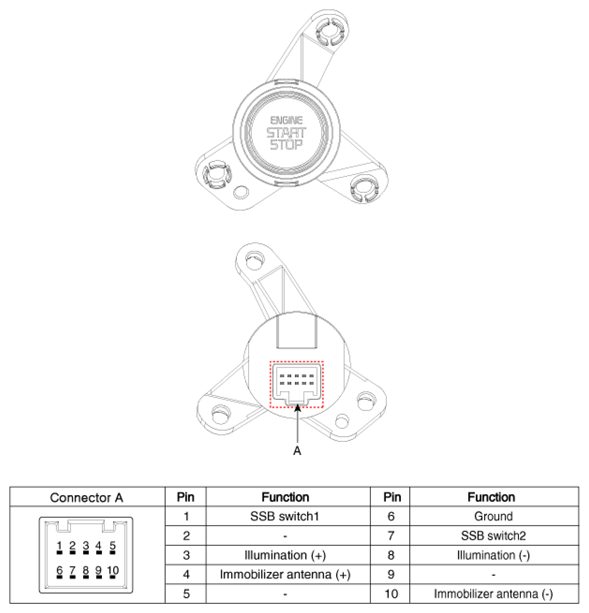

Home >> Kia >> 2022 >> Sorento Plug-In Hybrid SX >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System (PHEV) >> Start-Stop Button >> Schematic Diagrams >> Connector And Terminal Function
