Tailgate Open Switch

  1. Disconnect the negative (-) battery terminal.

    (Refer to Engine Electrical System - "AUXILIARY BATTERY ")

  2. Remove the tailgate lower trim.

    (Refer to Body - "TAILGATE TRIM ")

  3. Check for continuity between the terminals.

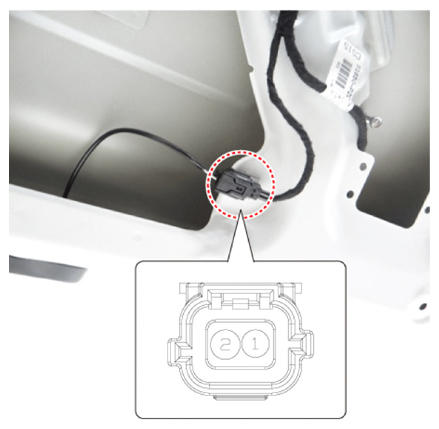

    G14958728Courtesy of KIA MOTORS AMERICA, INC.
    G14958729Courtesy of KIA MOTORS AMERICA, INC.
