Smart Key Status Check

  1. Connect the VCI II to the Data Link Connector (DLC).
  2. After IG ON, select the "SMK STATUS INFO".

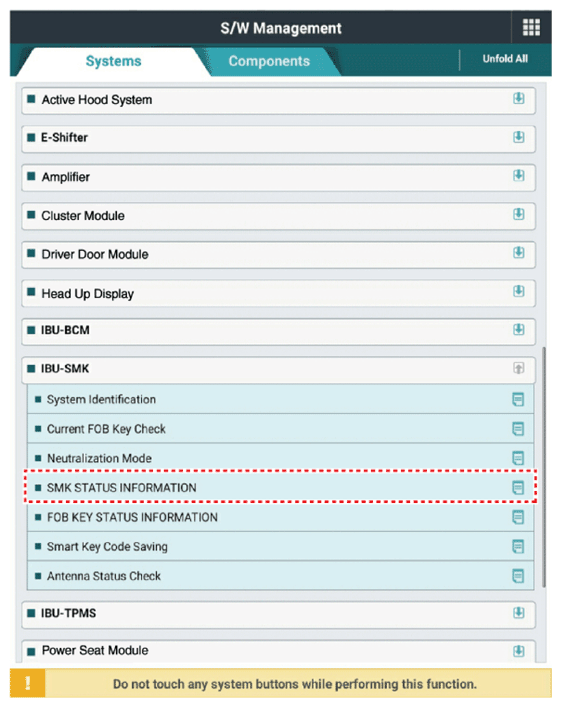

    G14958760Courtesy of KIA MOTORS AMERICA, INC.

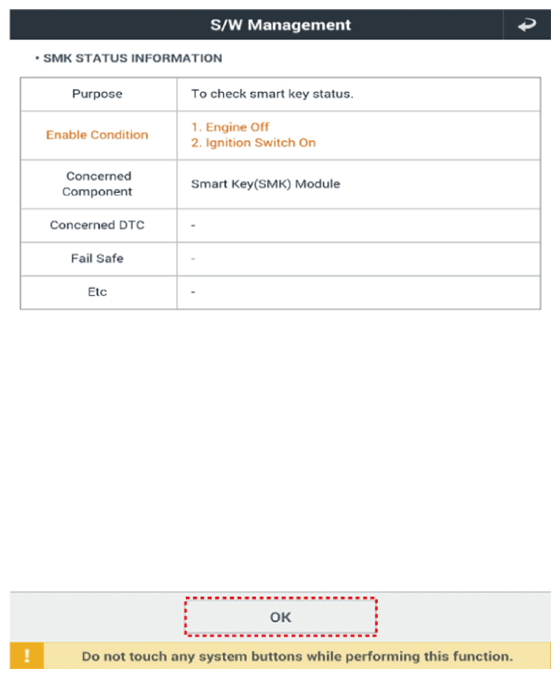

    G14958761Courtesy of KIA MOTORS AMERICA, INC.

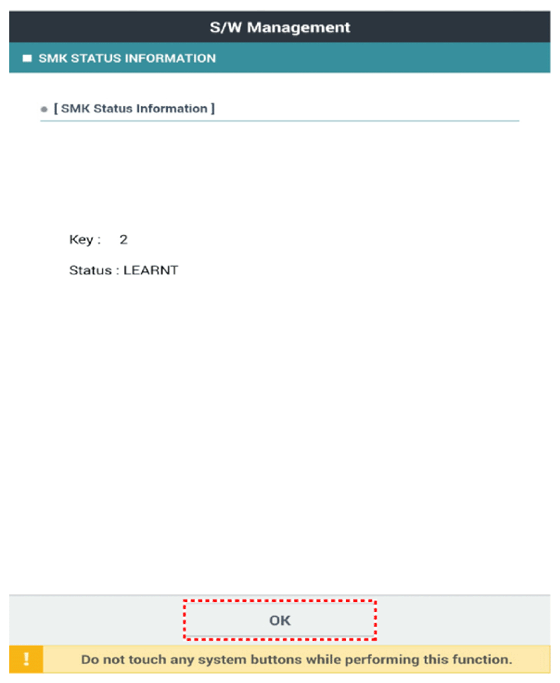

    G14958762Courtesy of KIA MOTORS AMERICA, INC.
