Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Install the AFS with the specified torque.
  • If AFS is dropped, it may cause internal damage. Do not use it.
  1. Install in the reverse order of removal.

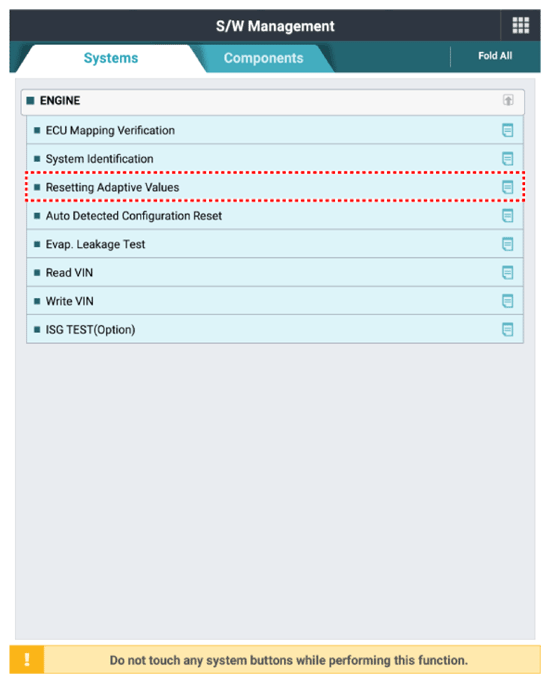

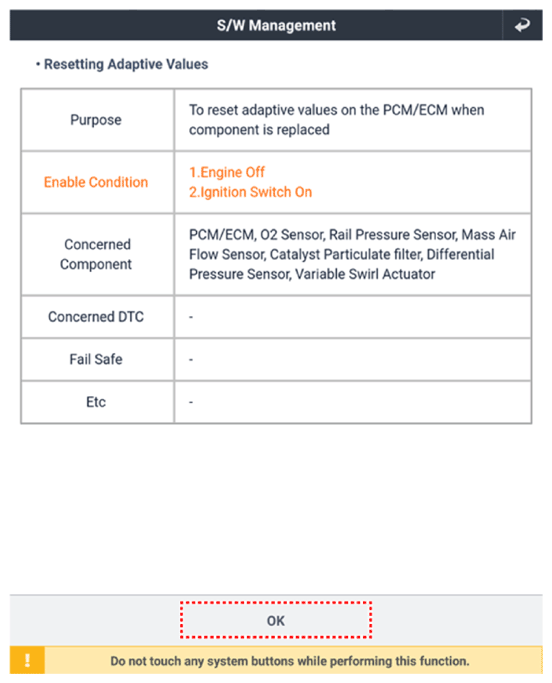

  2. Reset the Engine Control Module (ECM) adaptive value after replacing the AFS.
    G14956935Courtesy of KIA MOTORS AMERICA, INC.
    G14956936Courtesy of KIA MOTORS AMERICA, INC.
