Front Heated Oxygen Sensor

  1. Disconnect the negative battery terminal.

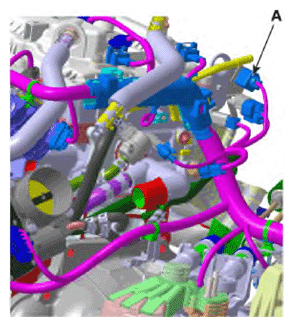

  2. Disconnect the connector (A).
    G13483047Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the heated oxygen sensor (B) by using the SST (09392-1Y100)

    Tightening torque  :

    39.2 - 49.1 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb.ft)

    G13483048Courtesy of KIA MOTORS AMERICA, INC.
