Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the multi sensor cover (A), (B).

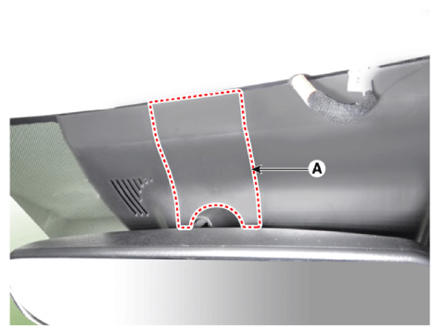

    G13486646Courtesy of KIA MOTORS AMERICA, INC.

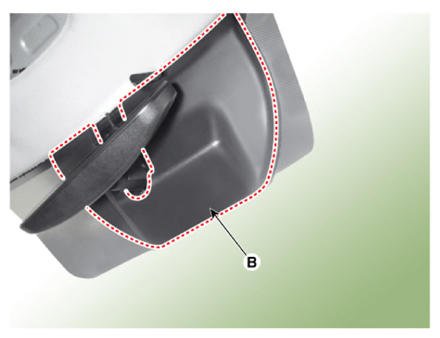

    G13486647Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the inside rear view mirror connector (A).

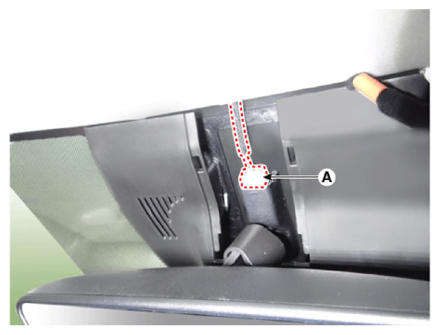

    G13486648Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the inside rear view mirror (A) after loosening the screw.

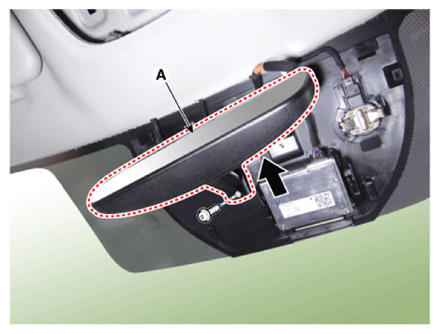

    G13486649Courtesy of KIA MOTORS AMERICA, INC.
