Repair Procedures: Removal: Battery

Turn the ignition switch OFF.

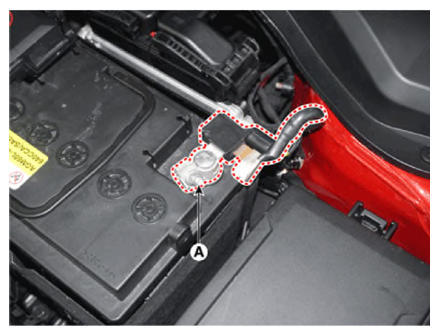

Disconnect the battery (-) terminal (A).
Battery (-) terminal installation:

4.0 - 6.0 N.m (0.4 - 0.6 kgf.m, 3.0 - 4.4 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

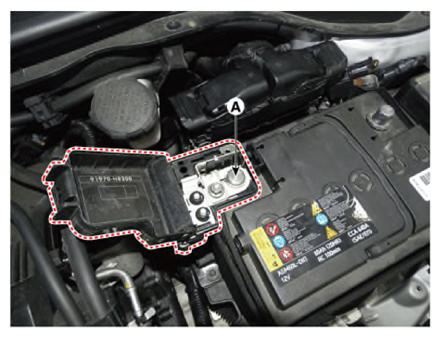

Remove the battery (+) terminal (A).
Battery (+) terminal installation:

7.8 - 9.8 N.m (0.8 -1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

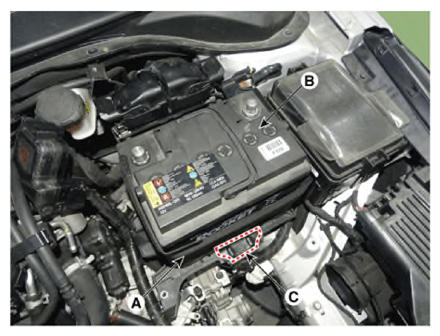

Remove the battery insulation pad (A).
Remove the battery (B) after removing the mounting bracket (C).
Battery mounting bracket installation:

9.8 -14.7 N.m (1.0 -1.5 kgf.m, 7.2 -10.9 Ib-ft)

Courtesy of KIA MOTORS AMERICA, INC.
