Repair Procedures: Replacement

  1. Loosen the front seat mounting bolts (A).

    Tightening torque:

    44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb.ft)

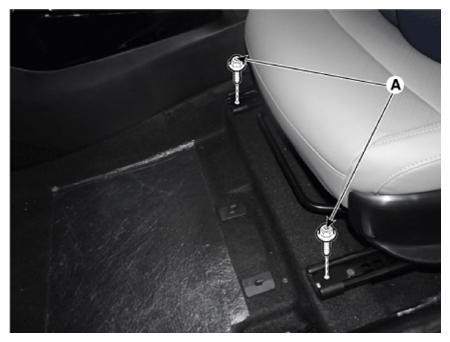

    [Front]

    G13705743Courtesy of KIA MOTORS AMERICA, INC.

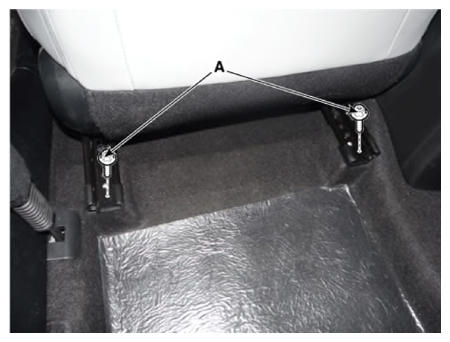

    [Rear]

    G13705744Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the airbag connector (A), seat warmer & power seat switch connector (B), front seat belt buckle connector (C), heater seat unit connector (D).

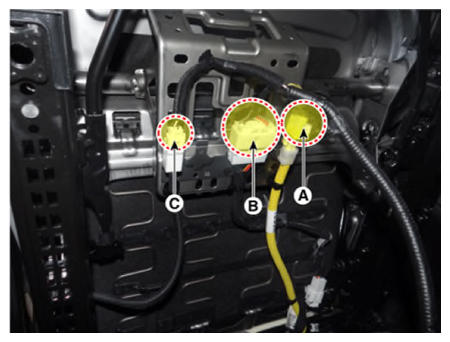

    [Driver's]

    G13705745Courtesy of KIA MOTORS AMERICA, INC.

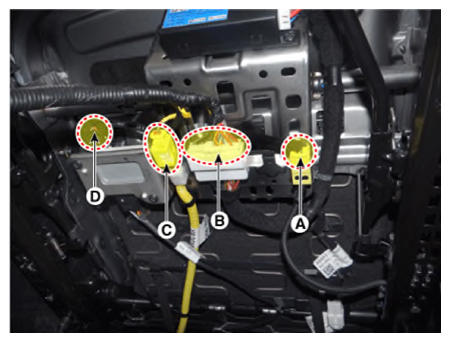

    [Passenger's]

    G13705746Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.

    Information

    SEAT MOUNTING BOLT INSTALLATION PROCEDURE

    • Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.
    • Set the seat into the foremost position. Check that each slide is locked, and then tighten the rear mounting bolt completely.
    • Set the seat into the rearmost position. Check that the front mounting bolt is tightened completely.
    • Check that the seat operates to and fro smoothy and the locking portion locks properly.
