Repair Procedures: Removal

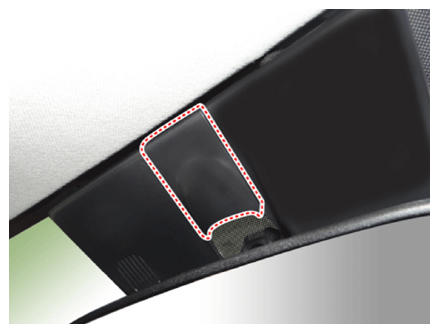

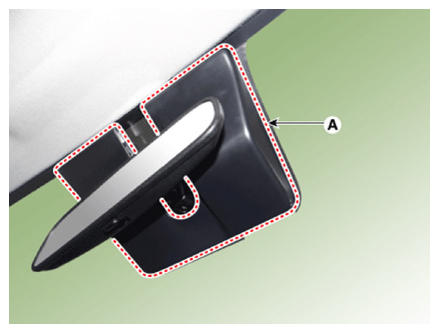

  1. Remove the mirror wiring cover (A).
    G13706125Courtesy of HYUNDAI MOTOR AMERICA
    G13706126Courtesy of HYUNDAI MOTOR AMERICA

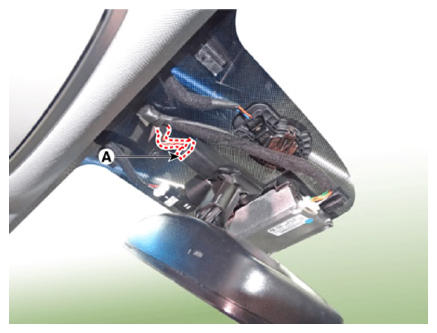

  2. Remove the mirror connector (A).
    G13706127Courtesy of HYUNDAI MOTOR AMERICA

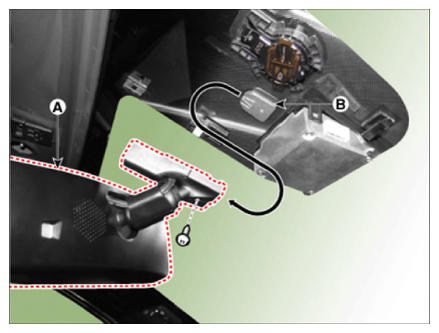

  3. Remove the mirror (A) by pulling up the mirror in the arrow direction below.
    NOTE: Make sure not to damage the mounting bracket (B) when removing the mirror.
    G13706128Courtesy of HYUNDAI MOTOR AMERICA
