Home >> Kia >> 2022 >> Niro Plug-In Hybrid LXS >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Double Clutch Transmission Control System (PHEV) >> Shift Lever >> Components & Components Location >> Components

Components & Components Location: Components

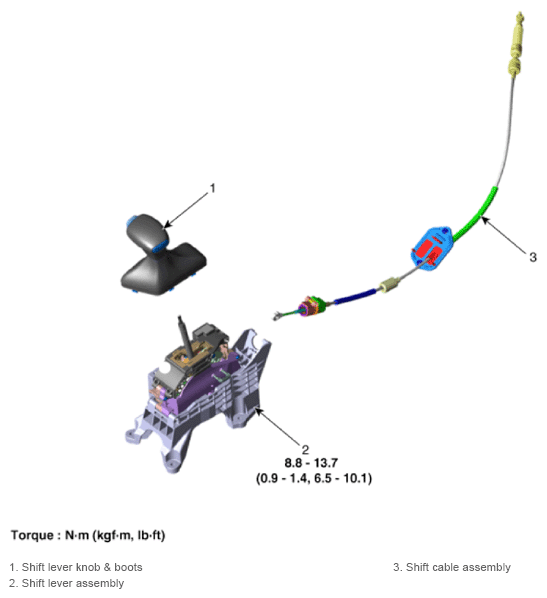

Fig 1: Shift Lever Components With Torque Specification

G13349194

Courtesy of KIA MOTORS AMERICA, INC.
