Assist Power Window Switch

  1. Remove the front left door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  2. Check for continuity between the terminals in each switch position according to the table.

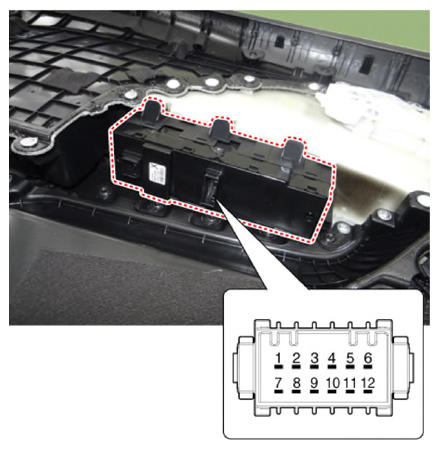

    G13351262Courtesy of KIA MOTORS AMERICA, INC.

    Non-Safety

    G13351263Courtesy of KIA MOTORS AMERICA, INC.

    Safety

    G13351264Courtesy of KIA MOTORS AMERICA, INC.
