Smart Key Unit

  1. Remove the BCM.

    (Refer to Body Control Module - "REMOVAL ")

  2. Remove the smart key unit (A) by loosening the bolt.
    G13351382Courtesy of KIA MOTORS AMERICA, INC.

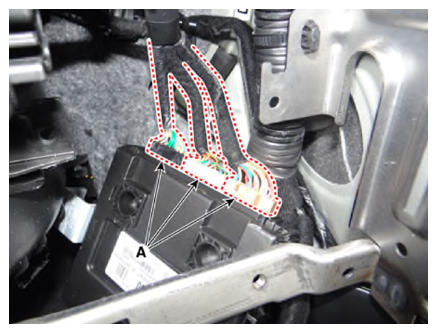

  3. Disconnect the connectors (A) from the smart key unit.
    G13351383Courtesy of KIA MOTORS AMERICA, INC.
