Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Loosen the nuts (A) and then disconnect the connector (B).

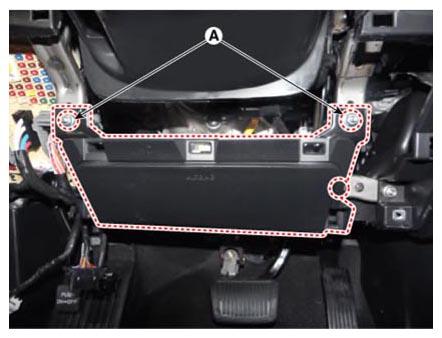

    G13212484Courtesy of KIA MOTORS AMERICA, INC.

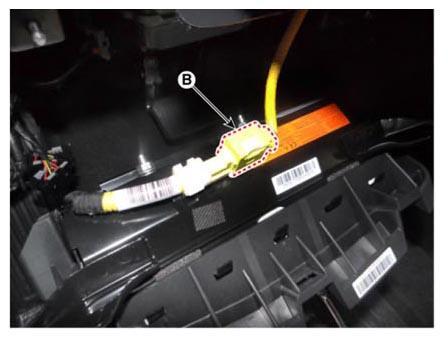

    G13212485Courtesy of KIA MOTORS AMERICA, INC.

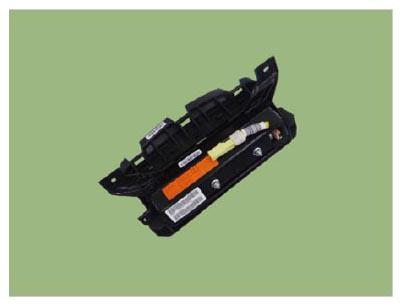

    G13212486Courtesy of KIA MOTORS AMERICA, INC.
