Vehicle S/W Management
WARNING: This page is about a different car, the 2020 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS to "Data Link Connector (DLC)".

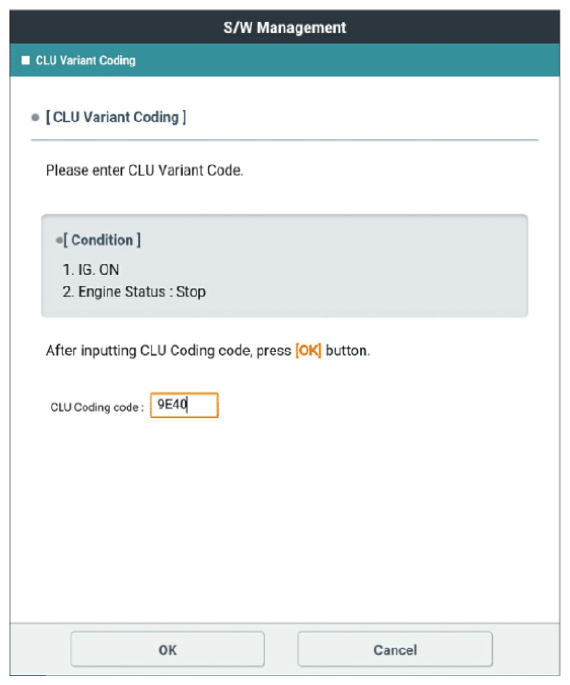

- Perform
"Vehicle S/W Management" of concerned component with KDS.
|
Figures below |

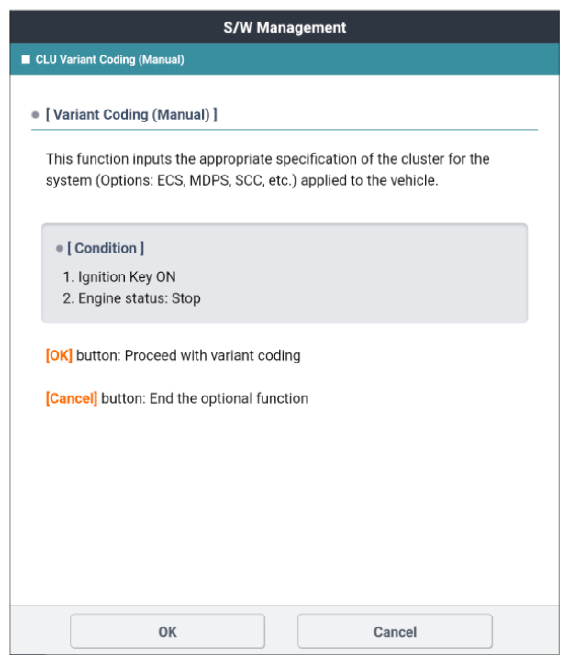

 Courtesy of KIA MOTORS AMERICA, INC.
|

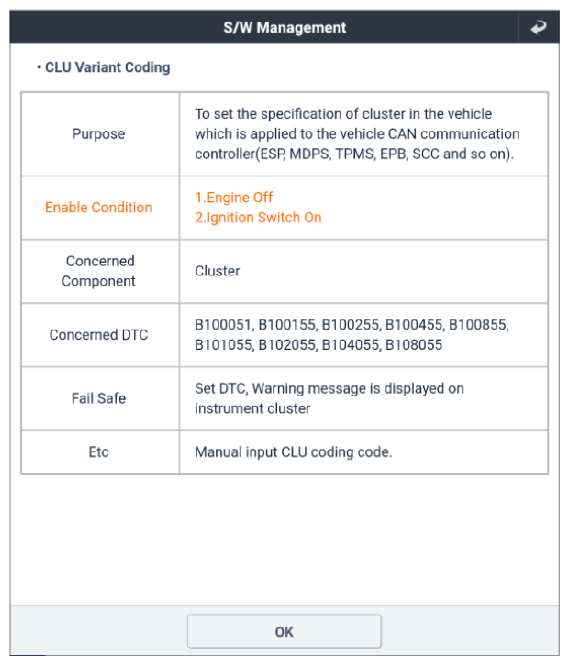

 Courtesy of KIA MOTORS AMERICA, INC.
|

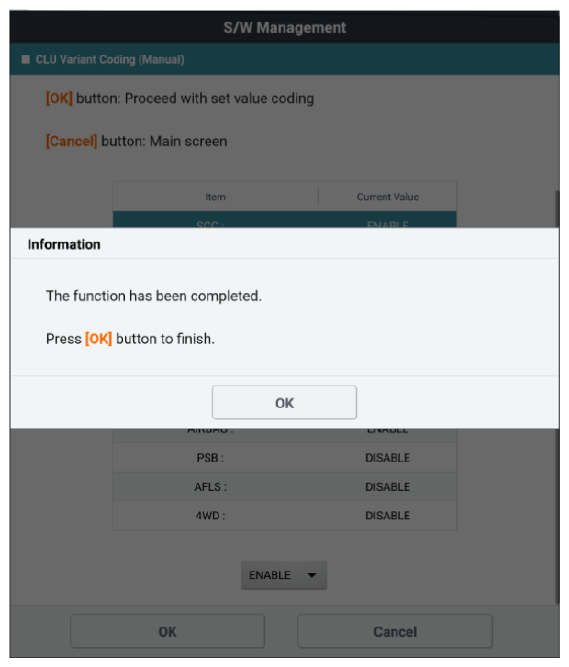

 Courtesy of KIA MOTORS AMERICA, INC.
|

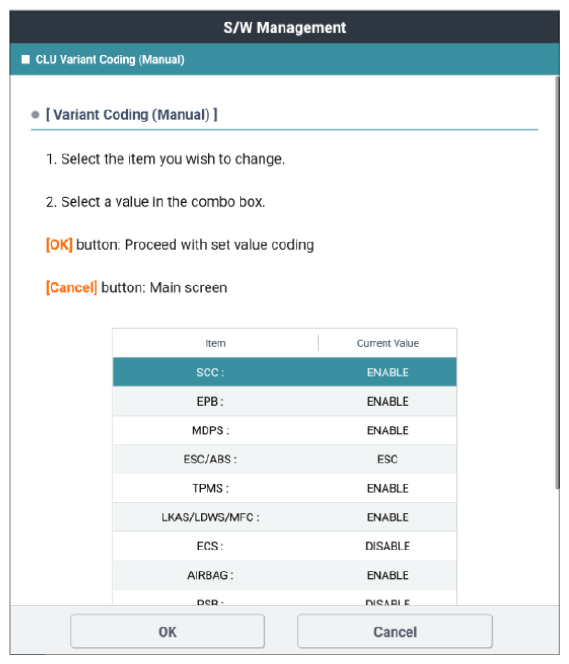

 Courtesy of KIA MOTORS AMERICA, INC.
|

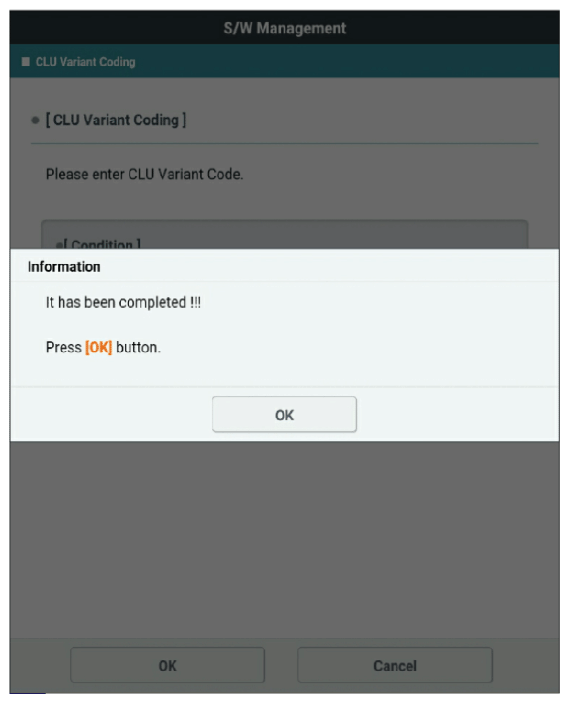

 Courtesy of KIA MOTORS AMERICA, INC.
|

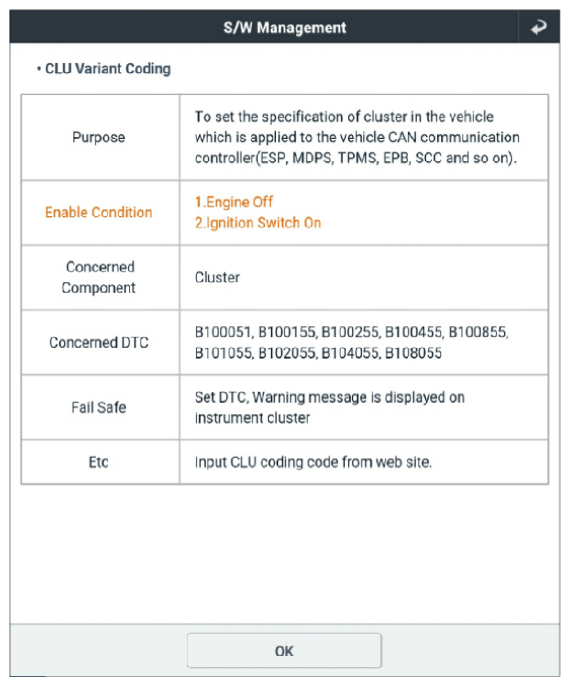

 Courtesy of KIA MOTORS AMERICA, INC.
|

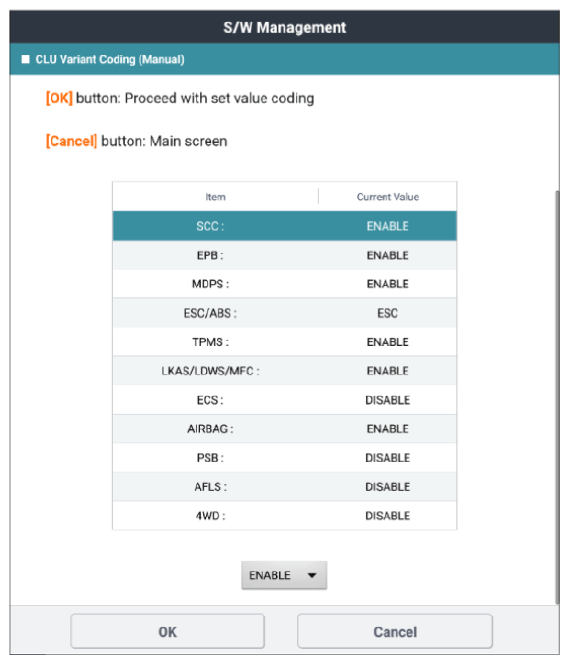

 Courtesy of KIA MOTORS AMERICA, INC.
|

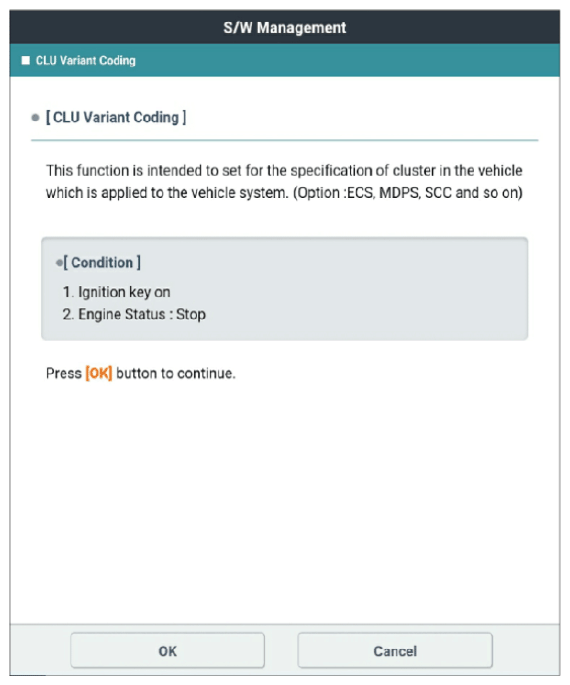

 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
