Front Power Window Motor

  1. Remove the front door trim.

    (Refer to Body - FRONT DOOR TRIM

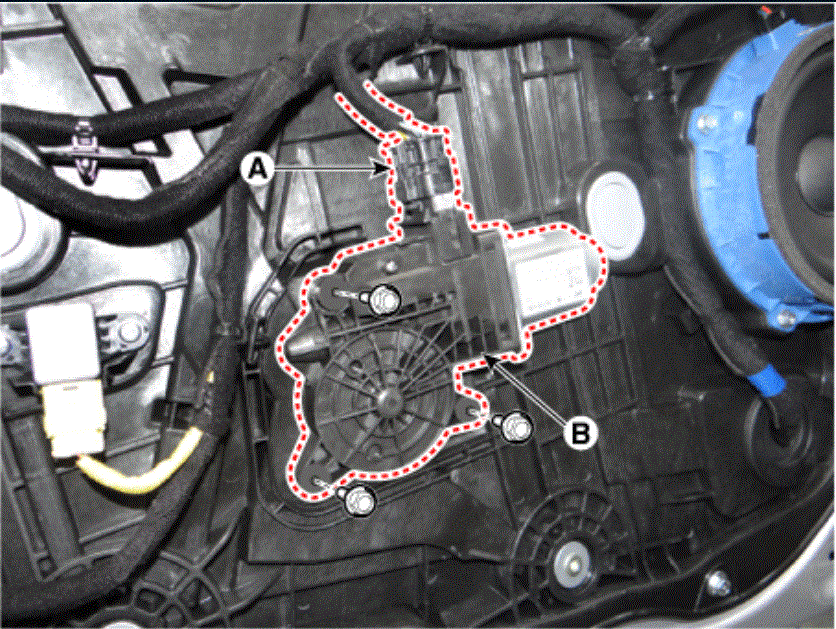

  2. After disconnecting the motor connector (A), remove the power window motor (B) by loosening the bolts.
    G00583776Courtesy of KIA MOTORS AMERICA, INC.
