Monitor DTC Status

WARNING: This page is about a different car, the 2021 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

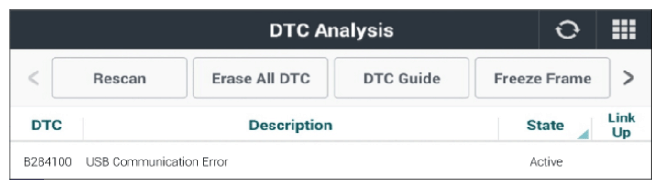

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Monitor "Diagnostic Trouble Codes (DTC)" with KDS.	Figure below

Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

Go to "WIRING INSPECTION " procedure.

History/Pending Fault

Fault is intermittent caused by poor contact in the sensor's and/or AVN's connector or was repaired and AVN memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
