Repair Procedures: Removal

WARNING: This page is about a different car, the 2020 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

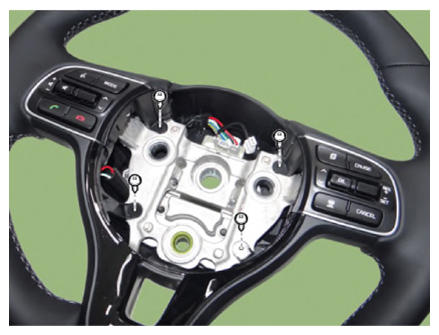

  3. Remove the steering back cover (A) after loosening the mounting screws.
    G13375124Courtesy of KIA MOTORS AMERICA, INC.

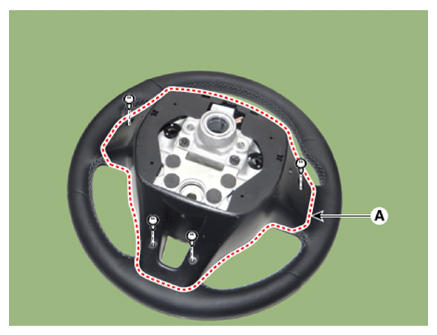

    G13375125Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the wiring connector (A) from the steering back cover.

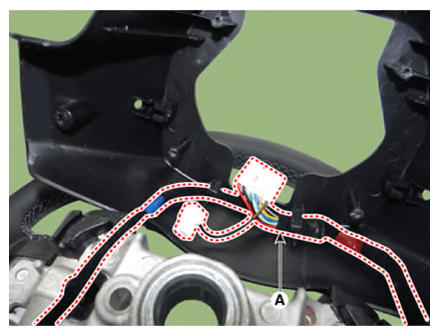

    G13375126Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the steering wheel remote control connector (A).

    [LH]

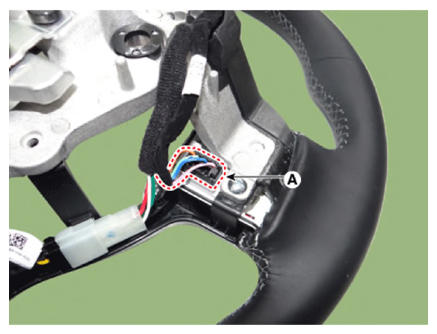

    G13375127Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

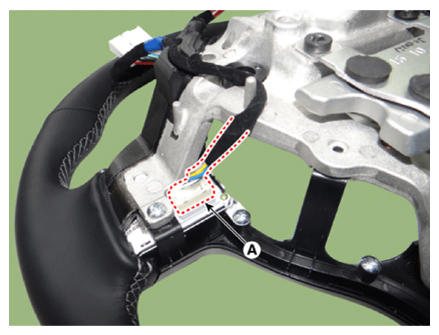

    G13375128Courtesy of KIA MOTORS AMERICA, INC.
  6. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.

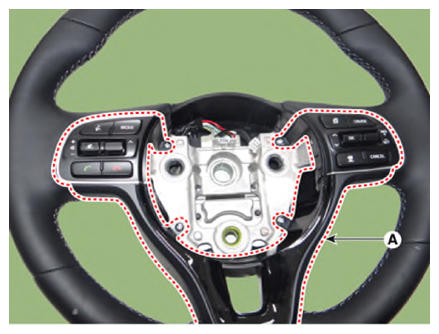

    G13375129Courtesy of KIA MOTORS AMERICA, INC.

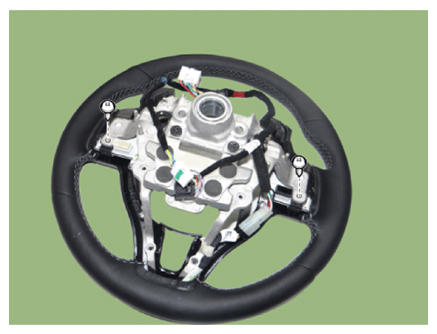

    G13375130Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the steering wheel remote control (A) after loosening the mounting screws.

    [LH]

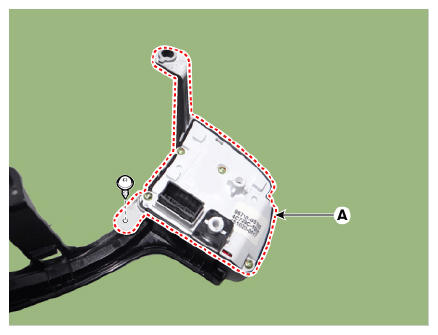

    G13375131Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

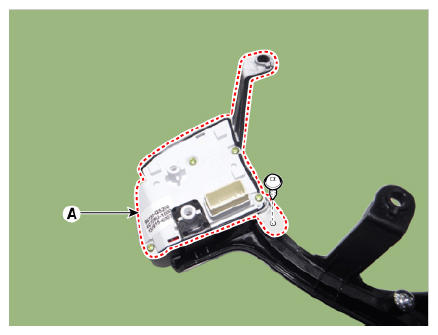

    G13375132Courtesy of KIA MOTORS AMERICA, INC.
