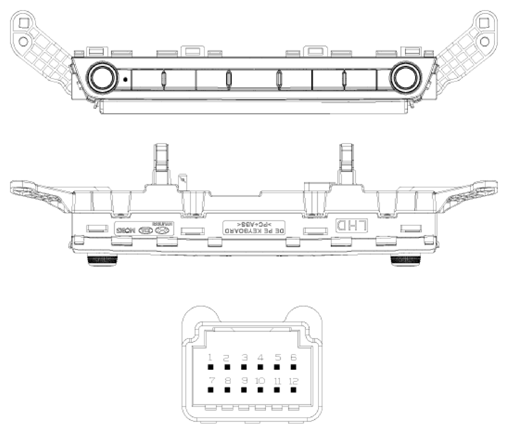

Connector And Terminal Function

WARNING: This page is about a different car, the 2020 Kia Niro EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of KIA MOTORS AMERICA, INC.

Pin	Function
1	-
2	Battery (+)
3	ACC
4	IGN1
5	Illumination (-)
6	Illumination (+)
7	MM-CAN (Low)
8	MM-CAN (High)
9	-
10	Ground
11	-
12	-
