Home >> Kia >> 2022 >> K5 LXS, FWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 1.6L >> Filler-Neck Assembly >> Components And Components Location >> Components >> [4WD]

Components And Components Location: Components: [4WD]

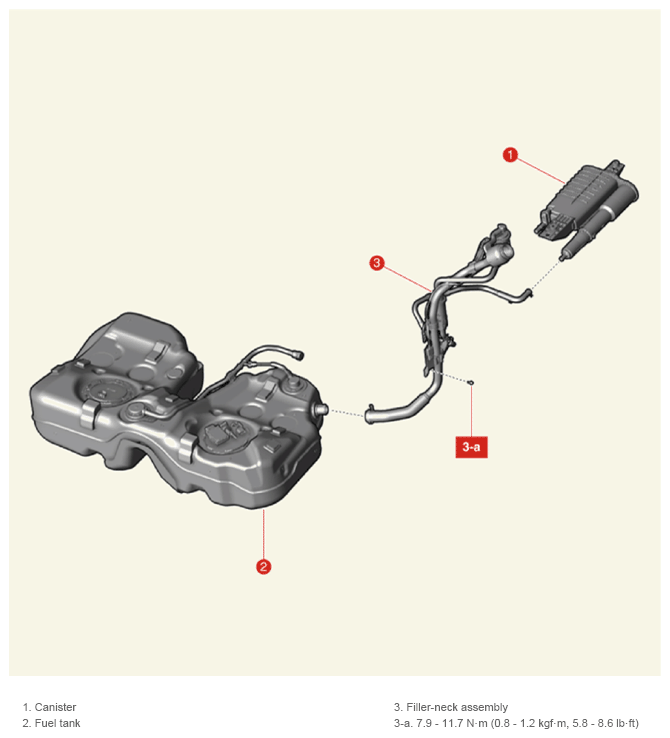

Fig 1: Filler - Neck Assembly Components Location With Torque Specification (4WD)

G13834026

Courtesy of KIA MOTORS AMERICA, INC.
