Repair Procedures: Inspection

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to " Replacement  ")

  3. Remove the crash pad garnish [LH].

    (Refer to " Crash pad garnish [LH]  ")

  4. Remove the crash pad lower garnish [LH] (A) by loosening the mounting screw.
    G13836145Courtesy of KIA MOTORS AMERICA, INC.

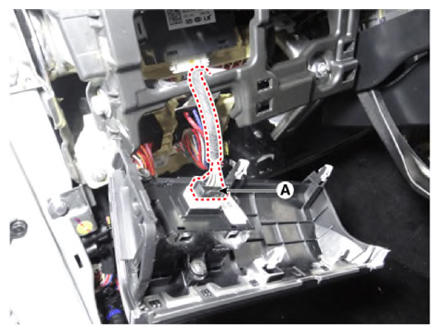

  5. Disconnect the connector (A) from the crash pad lower garnish [LH].
    G13836146Courtesy of KIA MOTORS AMERICA, INC.

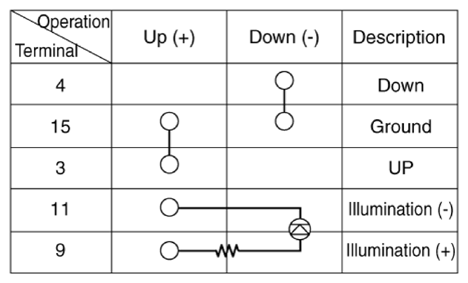

  6. Check rheostat switch for continuity.
    G13836147Courtesy of KIA MOTORS AMERICA, INC.
