Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Release the parking brake.

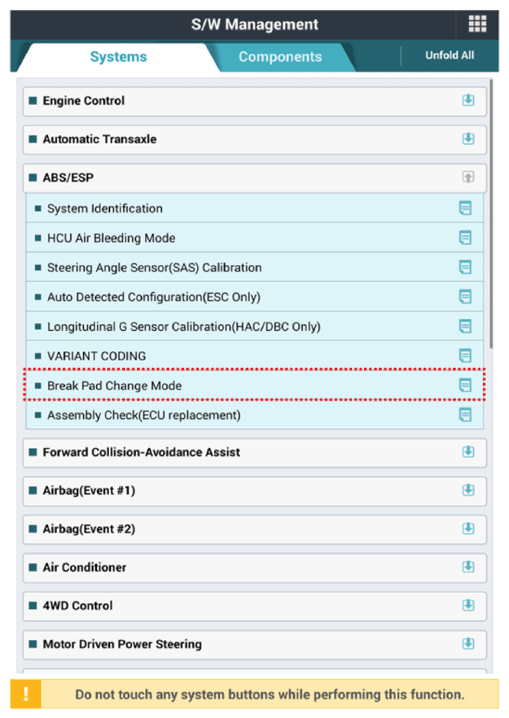

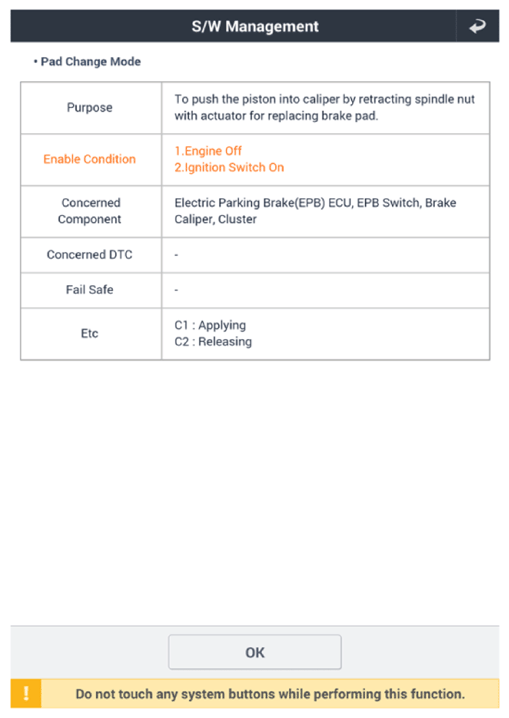

Before removing the rear caliper, perform "Brake Pad Replacement Mode" using the KDS.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

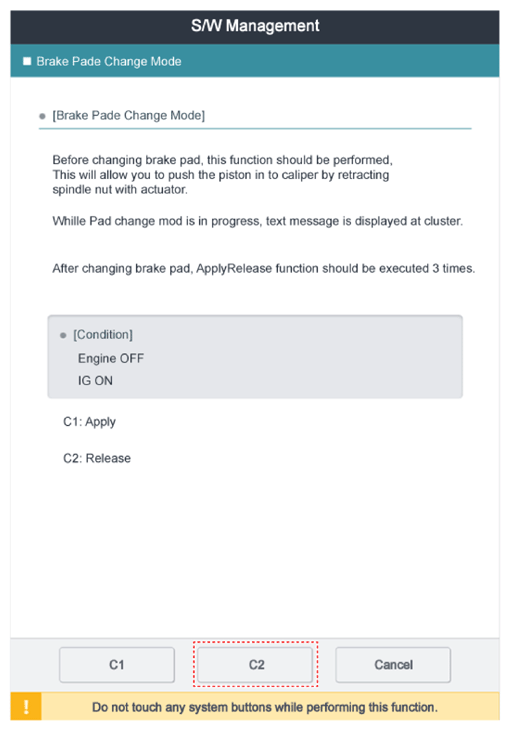

Select C2 (Release) on the screen below.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the (-) battery terminal.
Remove the rear wheel and tire.
(Refer to " Removal ")

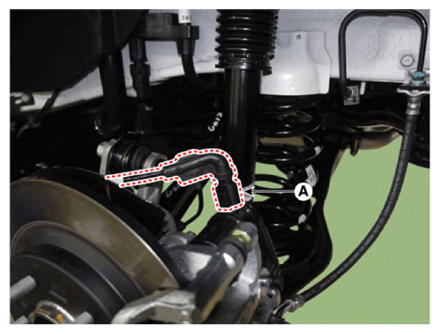

Disconnect the EPB actuator connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Loosen the guide rod bolt and then pivot the caliper body (A) up out of the way.
Tightening torque:

21.6-31.4 N.m(2.2 -3.2 kgf.m, 15.9-23.1 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

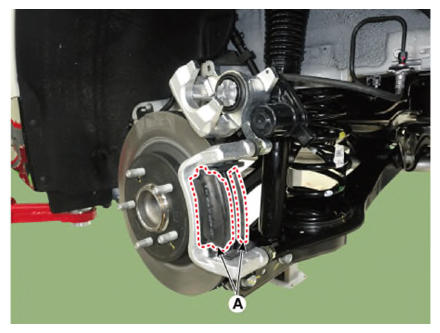

Remove the brake pad (A).

Courtesy of KIA MOTORS AMERICA, INC.

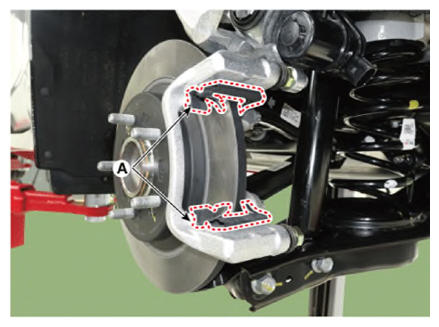

Remove the pad retainer (A).

Courtesy of KIA MOTORS AMERICA, INC.

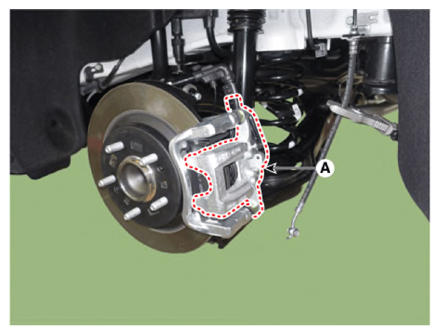

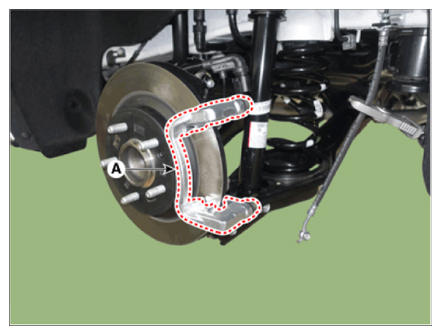

Remove the caliper carrier (A) after loosening the caliper mounting bolt.
Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Caliper carrier mounting bolts must use the new one.
- Fix the caliper assembly with a wire.

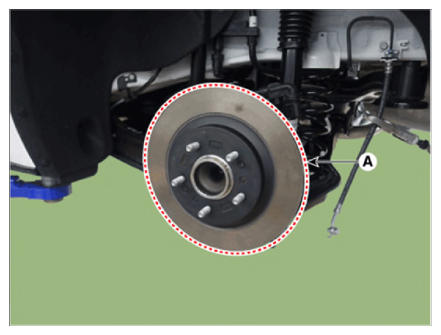

Remove the rear brake disc (A) by loosening the screws.
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
