Interior Antenna 2

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the floor console assembly.

    (Refer to " Replacement  ")

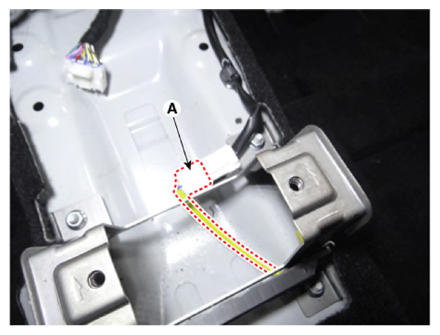

  3. Disconnect the interior antenna 2 connector (A).
    G13836310Courtesy of KIA MOTORS AMERICA, INC.

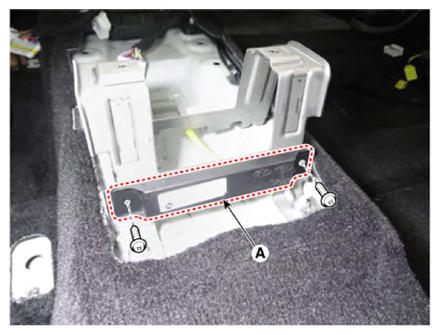

  4. Remove the interior antenna 2 (A) by loosening the mounting screws.
    G13836311Courtesy of KIA MOTORS AMERICA, INC.
