Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

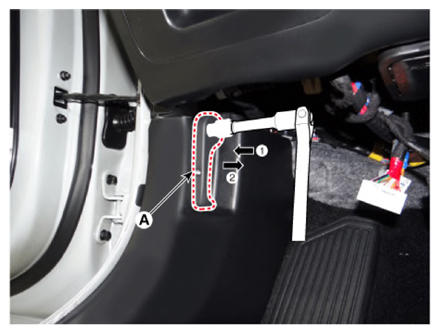

  1. Using a socket, remove the hood release handle (A).
    G13835338Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
    NOTE:
    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks/unlocks and opens/closes properly.
