Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Take care not to bend or scratch the trim and panels.
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat assembly.

    (Refer to " Replacement  ")

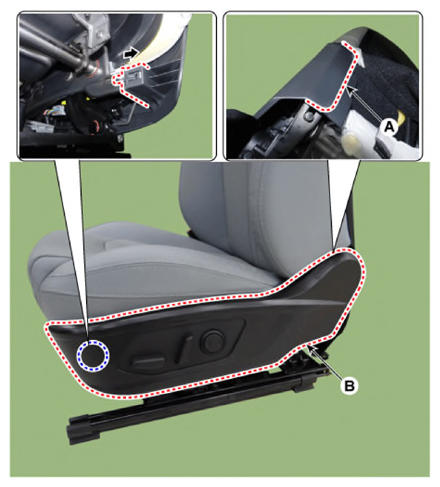

  2. Remove the protector (A) and remove the front seat outlet shield cover (B) in the direction of the arrow by pressing the locking pin.
    G13835717Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to damage the hook and bracket.

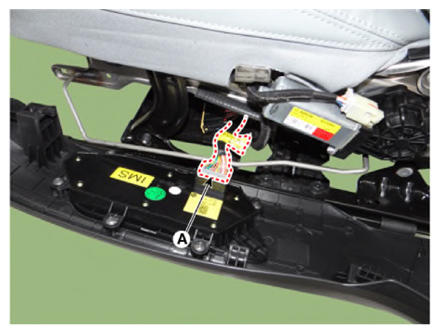

  3. Separate the front seat power switch connector (A).
    G13835718Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected in properly.
    • Replace any damaged clips (or pin-type retainers).
