Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Drive shaft joints require special grease, so do not add any other type of grease.
  • When removing the boot band, the boot band must be brand new.
  1. Remove the Front Driveshaft.

    (Refer to " Removal  ")

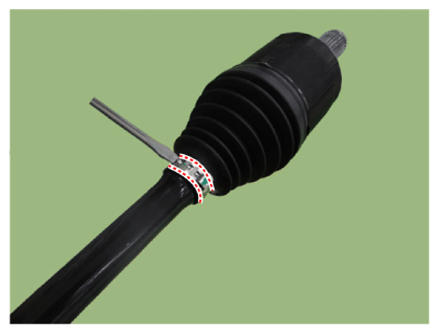

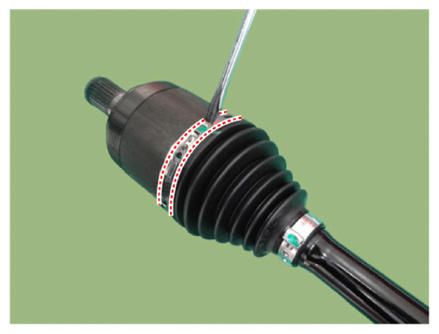

  2. Remove both boot bands from the transaxle side joint.
    G13834628Courtesy of KIA MOTORS AMERICA, INC.
    G13834629Courtesy of KIA MOTORS AMERICA, INC.

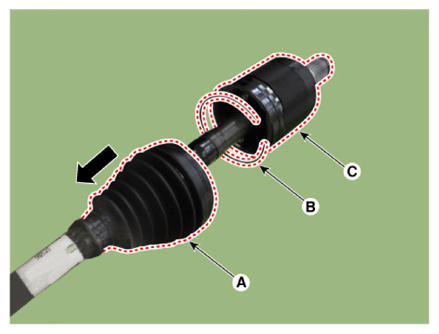

  3. Remove the joint stopper ring (B) and the joint housing (C) after separating the transaxle side joint boot (A) in the direction of the arrow.
    G13834630Courtesy of KIA MOTORS AMERICA, INC.

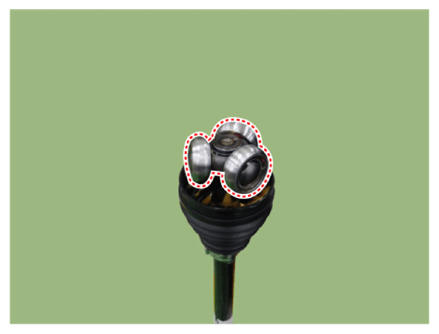

  4. Remove the bearing from the spider assembly.
    G13834631Courtesy of KIA MOTORS AMERICA, INC.

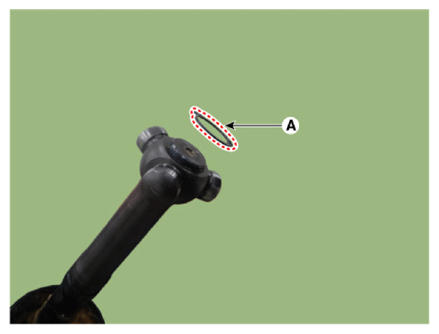

  5. Use the snap ring pliers to remove the snap ring (A).
    G13834632Courtesy of KIA MOTORS AMERICA, INC.

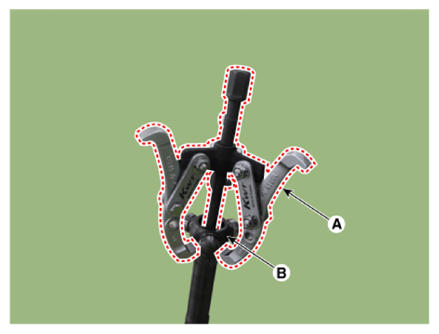

  6. Remove spider assembly (B) from driveshaft using puller (A).
    G13834633Courtesy of KIA MOTORS AMERICA, INC.

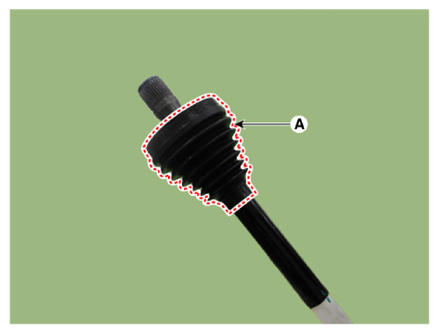

  7. Remove the transaxle side joint boot (A).
    G13834634Courtesy of KIA MOTORS AMERICA, INC.
  8. Clean the spider assembly and joint housing.
