Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When Removing With A Flat-Tip Screwdriver Or Remover, Wrap Protective Tape Around The Tools To Prevent Damage To Components.
Put On Gloves To Prevent Hand Injuries.

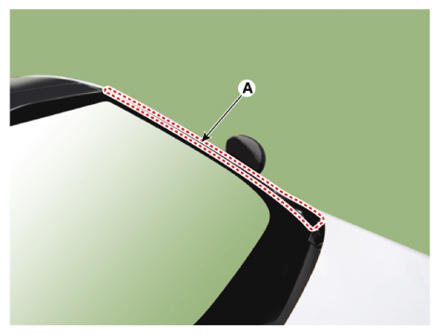

Using A Screwdriver Or Remover, Remove The Windshield Glass Side Molding (A).

Courtesy of KIA MOTORS AMERICA, INC.

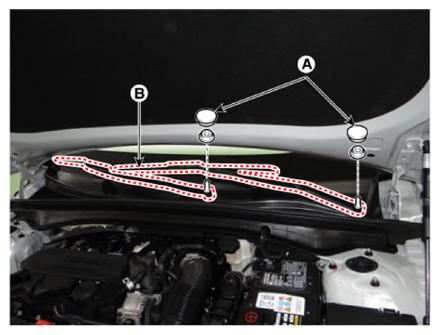

Separate The Plug Hole (A), Loosen The Mounting Nuts And Remove The Wiper Arm (B).

Courtesy of KIA MOTORS AMERICA, INC.

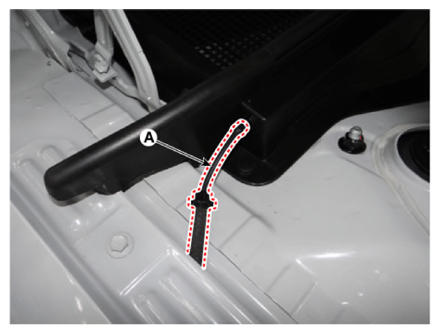

Separate The Washer Nozzle (A).

Courtesy of KIA MOTORS AMERICA, INC.

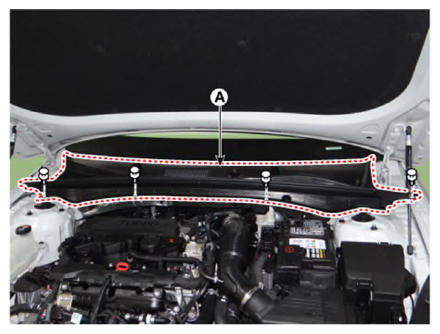

Loosen The Mounting Clips And Remove The Cowl Top Cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install In The Reverse Order Of Removal.
Information

Replace Any Damaged Clips (Or Pin-Type Retainers).
