Operations For Guideline Steering Interlocking Indications

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

The guideline for steering interlocking trace is indicated by using the value of steering wheel angle periodically received by SVM ECU via C-CAN.

A combination of the rear area that displays of the rear mode (two-split mode) and the expected car movement trace displayed on the wide view is displayed.

View modes for guideline steering interlocking indications

Mode	View	Notes
Rear	Rear wide view + Surround View	Courtesy of KIA MOTORS AMERICA, INC.
	Rear top view + Surround View	Courtesy of KIA MOTORS AMERICA, INC.
	Rear side view + Surround View	Courtesy of KIA MOTORS AMERICA, INC.

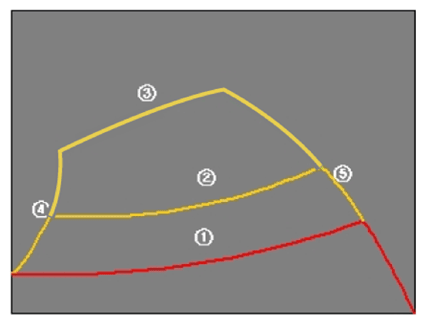

Specifications for guideline steering interlocking trace lines

Description	Number	Distance	Color
Steering wheel interlocking trace lines	(1)	19.6 in. (0.5 m)	Red
	(2)	39.3 in. (1.0 m)	Yellow
	(3)	118.1 in. (3.0 m)	Yellow
	(4)	Vehicle left side end + 11.8 in. (0.3 m)	Red + Yellow
	(5)	Vehicle right side end + 11.8 in. (0.3 m)	Red + Yellow

Courtesy of KIA MOTORS AMERICA, INC.
