Forward Collision-avoidance Assist (FCA)
WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
- Operation specification
Item Sensor Fusion (Front View Camera + Front Radar) Car Car Pedestrian Cyclist Junction Operation speed (Wheel speed) Warning 10 - 180 km/h (5 - 110 mile/h) 10 - 180 km/h (5 - 110 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 30 km/h (5 - 19 mile/h) FULL Braking 10 - 75 km/h (5 - 45 mile/h) 10 - 85 km/h (5 - 50 mile/h) 10 - 65 km/h (5 - 40 mile/h) 10 - 65 km/h (5 - 40 mile/h) Remarks Stationary Moving vehicle - - Warning level Warning Visible/Audible warning FULL Braking Visible/Audible warning + Engine drag + Full braking Alarm sensitivity (User setting menu) Normal - Late - System components

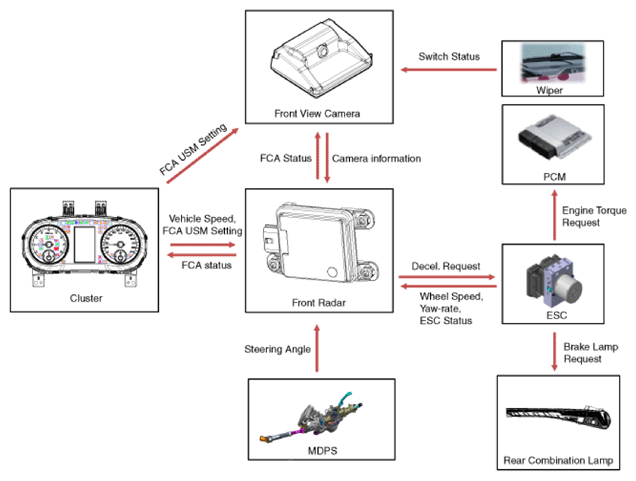

- System block diagram

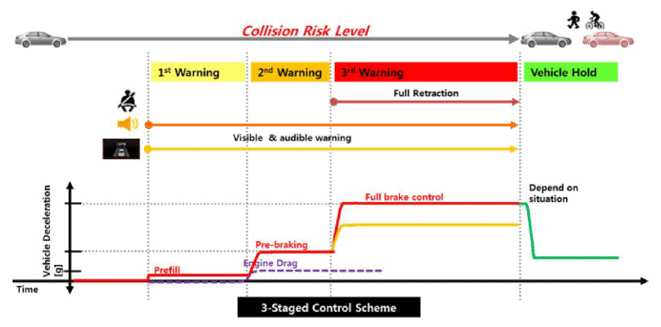

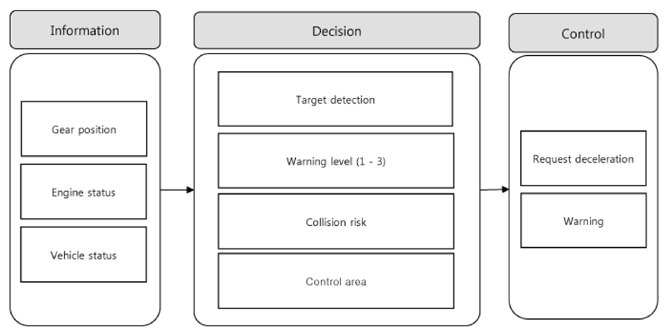

- System operation
