Component Inspection

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

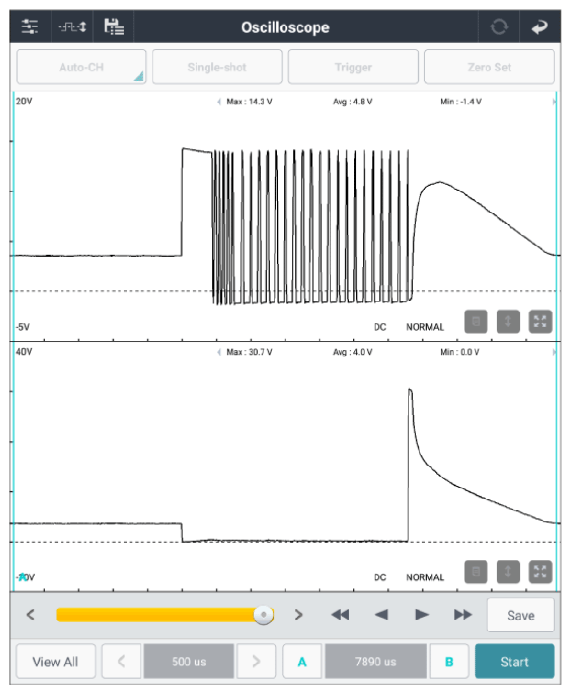

Engine "ON".	FPCV connector	2(+)	Chassis ground	-	Fig.1
Engine "ON".	FPCV connector	1 (-)	Chassis ground	-	Fig.1

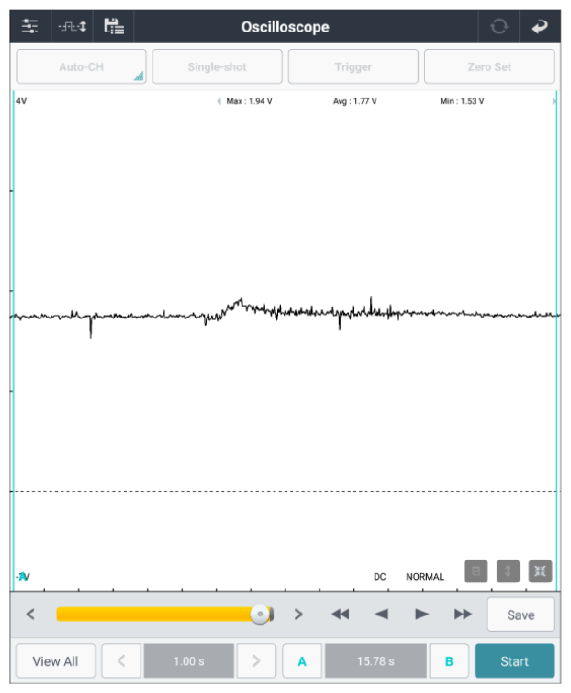

Engine "ON".	FRPS connector	2 (signal)	Chassis ground	-	Fig.2

G13808505

Courtesy of KIA MOTORS AMERICA, INC.

G13808506

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the FRPS or FPCV and Go to "VERIFICATION OF REPAIR " procedure.
