Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Removing or installing the hood lifter requires an assistant.
When removing the hood lifter, first remove the lower part and then upper part.

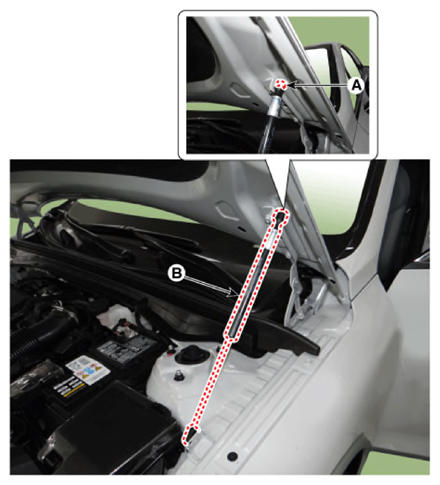

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B), and then remove the lifter from the bracket.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
