Repair Procedures: Replacement

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front bumper assembly.
(Refer to " Replacement ")

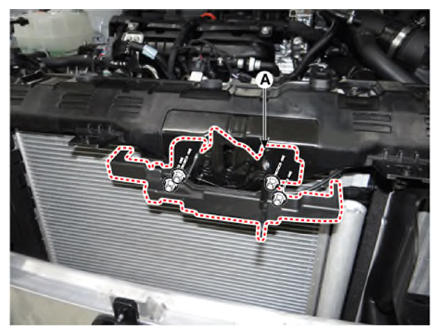

Loosen the mounting nuts and remove the hood latch assembly (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the hood latch connector (A) after loosening the screw.

Courtesy of KIA MOTORS AMERICA, INC.

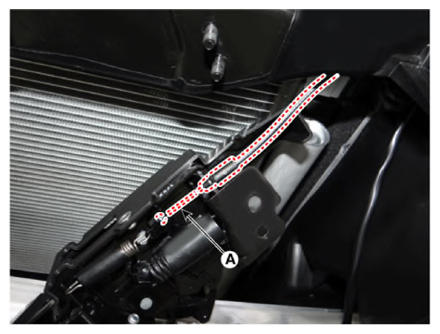

Disconnect the hood latch cable (A) and remove the hood latch assembly.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
- Replace any damaged clips (or retainers or fasteners).
