Front Midrange Speaker

WARNING: This page is about a different car, the 2023 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front door trim.(Refer to "Replacement ")

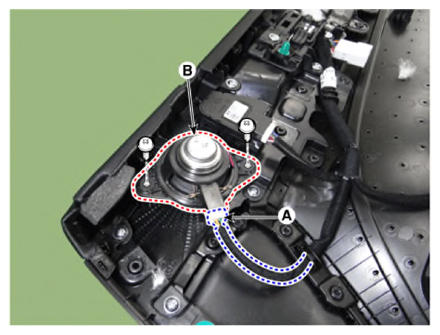

  3. Disconnect the connector (A) and then remove front midrange speaker (B) by loosening the screws.
G13835861Courtesy of KIA MOTORS AMERICA, INC.
