Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the roof trim assembly.

    (Refer to " Replacement  ")

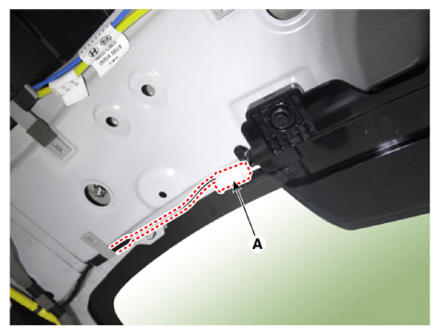

  3. Disconnect the high mounted stop lamp connector (A).
    G13836110Courtesy of KIA MOTORS AMERICA, INC.

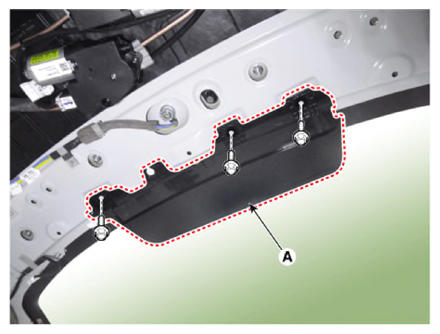

  4. Remove the high mounted stop lamp (A) by loosening the mounting bolts.
    G13836111Courtesy of KIA MOTORS AMERICA, INC.

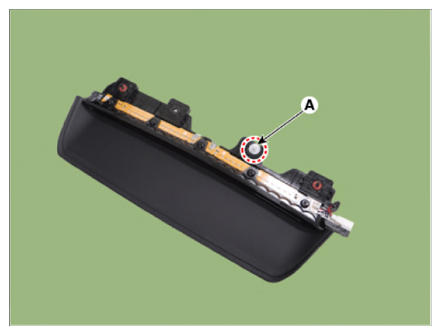

    Information

    Replace any damaged clip.

    G13836112Courtesy of KIA MOTORS AMERICA, INC.
