Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the rear door window glass.

    (Refer to " Replacement  ")

  2. Remove the rear door outside handle.

    (Refer to " Replacement  ")

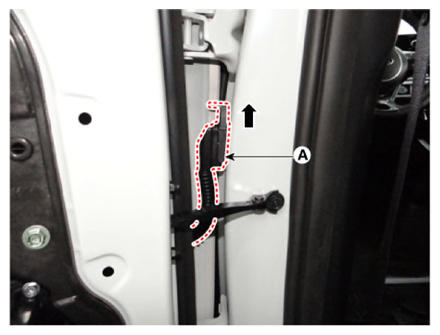

  3. Release the locking pin in the direction of the arrow and remove the rear door main wiring connector (A).
    G13835414Courtesy of KIA MOTORS AMERICA, INC.

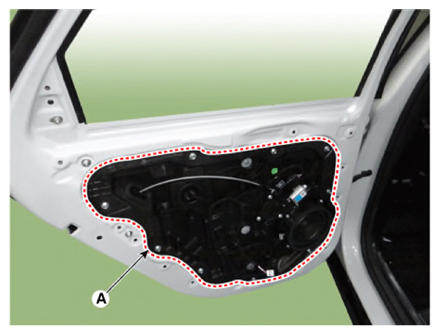

  4. Loosen the mounting bolts and remove the rear door module (A).

    Tightening torque:

    7.8 -11.8 N.m (0.8 -1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G13835415Courtesy of KIA MOTORS AMERICA, INC.

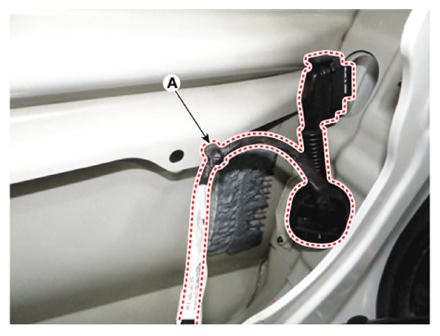

  5. Disconnect the rear door module wiring clip (A).
    G13835416Courtesy of KIA MOTORS AMERICA, INC.

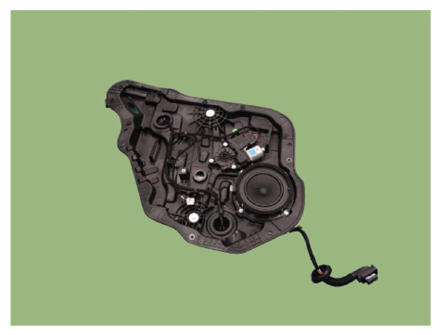

  6. Disconnect the connectors and rear door module wiring harness.
    G13835417Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the rear speaker.

    (Refer to " Removal  ")

  8. Remove the rear power window motor.

    (Refer to " Rear Power Window Motor  ")

  9. Install in the reverse order of removal.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
