Repair Procedures: Replacement: [Driver]

WARNING: This page is about a different car, the 2024 Kia K5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to " Replacement  ")

  3. Remove the knee airbag (KAB).

    (Refer to " Removal  " )

  4. Remove the parking collision-avoidance assist (PCA) unit.

    (Refer to " Removal  ")

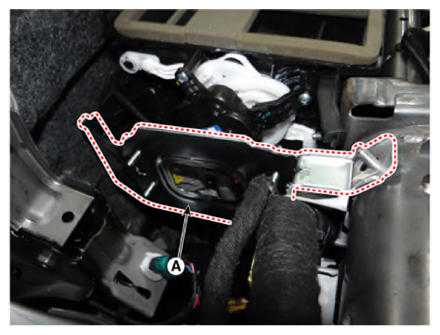

  5. Remove the parking collision-avoidance assist (PCA) unit bracket (A) by loosening the mounting bolts and nuts.
    G13836473Courtesy of KIA MOTORS AMERICA, INC.

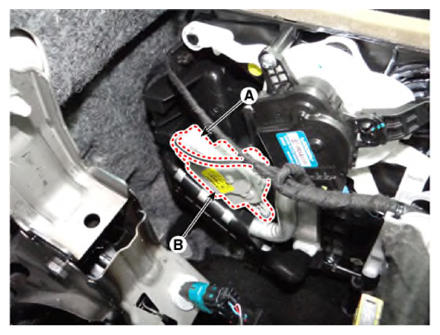

  6. Remove the temperature control actuator (B) by loosening the mounting screws after disconnecting the connector (A).
    G13836474Courtesy of KIA MOTORS AMERICA, INC.
  7. Install in the reverse order of removal.
