Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - AIR CLEANER ")

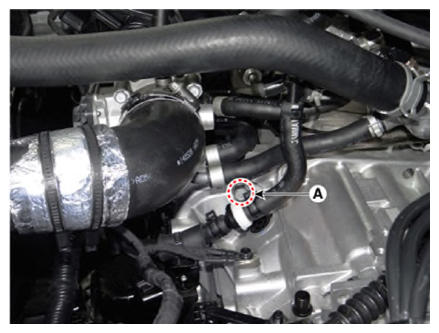

  3. Remove the starter mounting upper bolt (A).

    Starter mounting upper bolt:  49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G14560712Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  5. Remove the vacuum pump.

    (Refer to VACUUM PUMP Brake System - "Vacuum Pump")

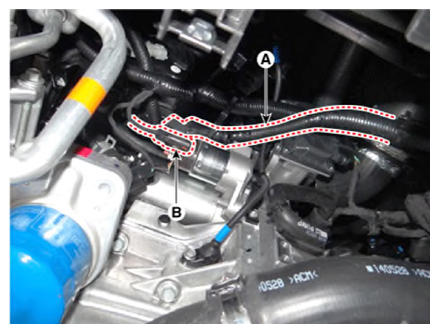

  6. Disconnect the starter cable (A) from the B terminal on the solenoid then disconnect the connector (B) from the S terminal.

    Starter solenoid "B" terminal mounting nut:  9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G14560713Courtesy of KIA MOTORS AMERICA, INC.

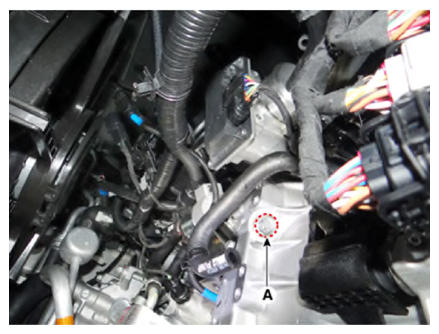

  7. Remove the starter mounting lower bolt (A).

    Starter mounting lower bolt:  49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G14560714Courtesy of KIA MOTORS AMERICA, INC.

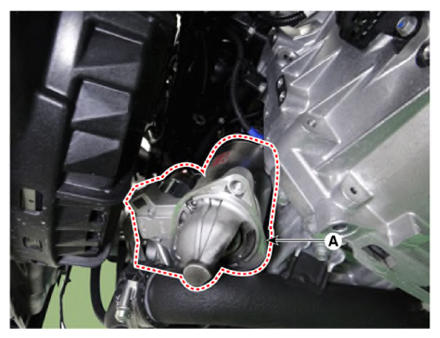

  8. Remove the starter (A).
    G14560715Courtesy of KIA MOTORS AMERICA, INC.
