Power Window Sub Switch

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the passenger side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

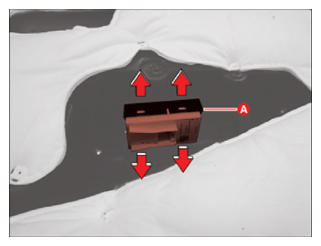

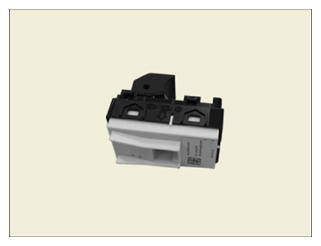

  3. Remove the power window sub switch (A) after pushing the hooks in the direction of arrow.
G14861738Courtesy of KIA MOTORS AMERICA, INC.
G14861739Courtesy of KIA MOTORS AMERICA, INC.
