Home >> Kia >> 2022 >> EV6 GT-Line, RWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Switch >> Removal & Installation >> Removal >> Power Window Main Switch

Power Window Main Switch

  1. Disconnect the battery negative (-) terminal and the service interlock connector.

    (Refer to REMOVAL & INSTALLATION - 2WD

    (Refer to REMOVAL & INSTALLATION - 4WD

  2. Remove the driver side front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

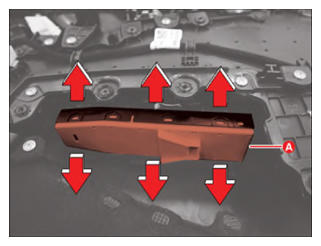

  3. Remove the power window main switch (A) after pushing the hooks in the direction of arrow.
G14861736Courtesy of KIA MOTORS AMERICA, INC.

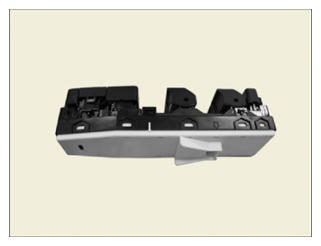

G14861737Courtesy of KIA MOTORS AMERICA, INC.
