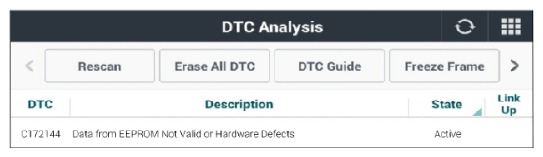

Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|
Fig.1 |
Active Fault
- Go to "VEHICLE S/W MANAGEMENT " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or E-Shifter connector or was repaired and E-Shifter memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
- Repair or replace as necessary and go to "Verification of Repair " procedure.
