Monitor KDS Data
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

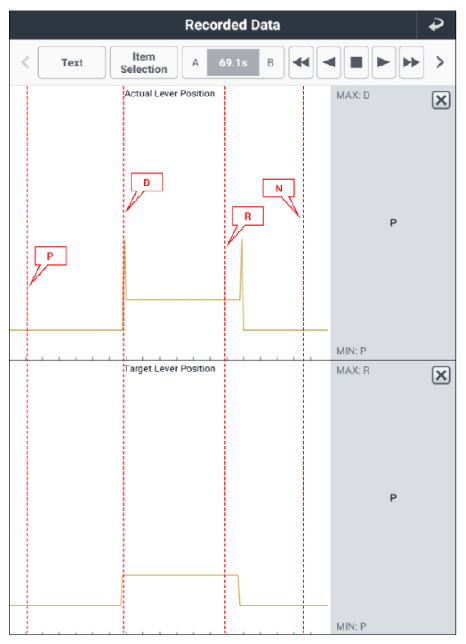

Fig.1 |
Good
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
- Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Go to "WIRING INSPECTION " procedure.
