Component Inspection

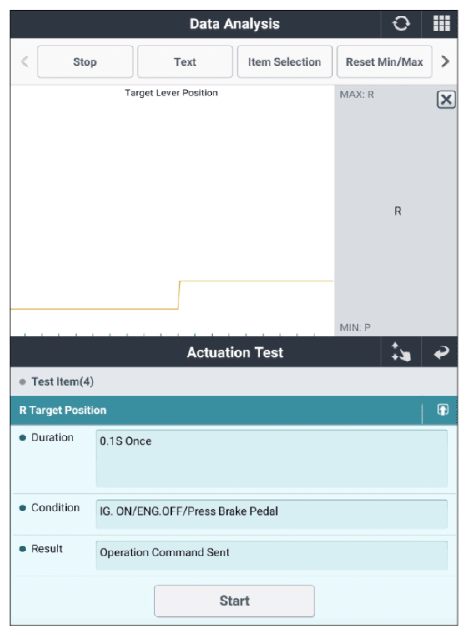

Courtesy of KIA MOTORS AMERICA, INC.

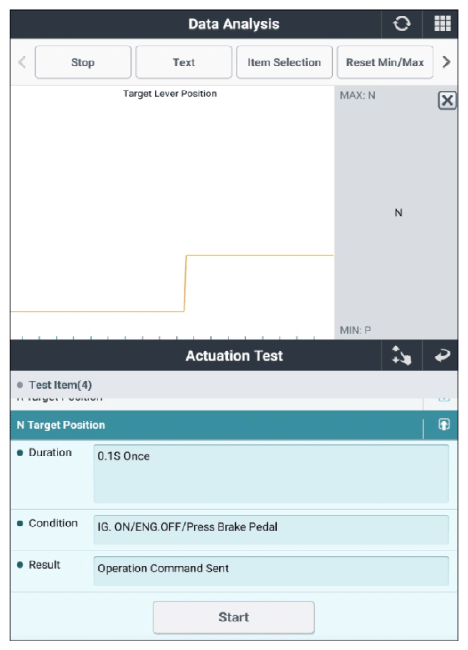

Courtesy of KIA MOTORS AMERICA, INC.

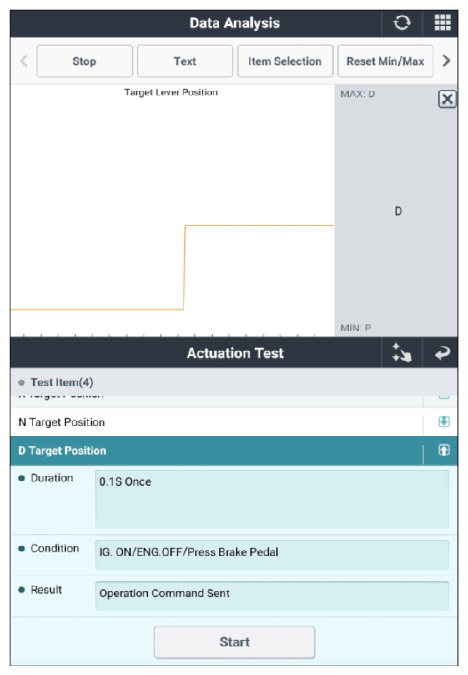

Courtesy of KIA MOTORS AMERICA, INC.

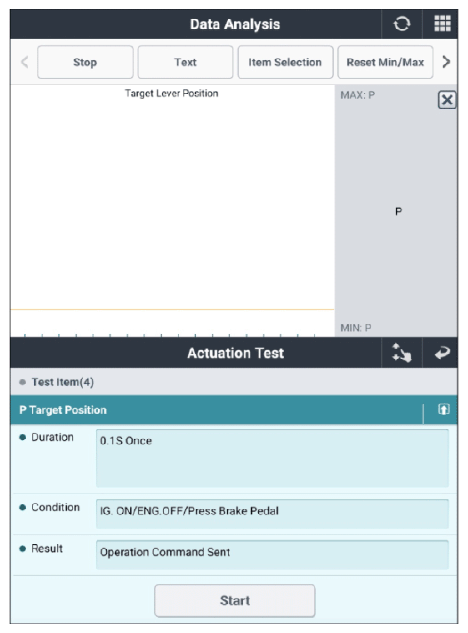

Courtesy of KIA MOTORS AMERICA, INC.

Good

• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of auxiliary battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
• Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

• Check SBW actuator motor assembly for failure. (motor connection shaft, gear break, etc.)
• If no problems were found with the circuits or connectors, replace the SBW actuator and go to "Verification of Repair " procedure.
