Rear Door Lock Module
- Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD
(Refer to REMOVAL & INSTALLATION - 4WD
- Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")
- Disconnect the connector from the rear door lock actuator.
[Central Lock/Power Child Lock/Dead Lock]

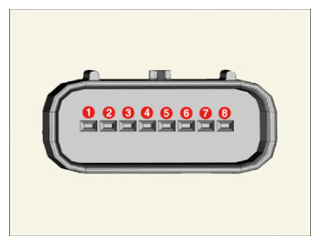

CENTRAL LOCK/POWER CHILD LOCK/DEAD LOCK - TERMINAL FUNCTION DESCRIPTIONTerminal Function LH RH 1 Power child switch M2 2 COM M3 3 Lock/Unlock switch M1 4 Switch (AJAR) M4 5 M4 Switch (AJAR) 6 M1 Lock/Unlock switch 7 M3 COM 8 M2 Power child switch - Check actuator operation by connecting power and ground as shown in the table below.
[Central Lock]
[LH]
CENTRAL LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Function | |
|---|---|---|
| Central Lock | Central Unlock | |
| 8 | - | + |
| 7 | + | - |
| 2 - 3 | ON → OFF | OFF → ON |
| 2 - 4 | Door open & half latching: ON Full latching: OFF |
|
[RH]
CENTRAL LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Function | |
|---|---|---|
| Central Lock | Central Unlock | |
| 1 | + | - |
| 2 | - | + |
| 7 - 6 | ON → OFF | OFF → ON |
| 7 - 5 | Door open & half latching: ON Full latching: OFF |
|
[Power Child Lock]
[LH]
POWER CHILD LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Child Lock | Child Unlock |
|---|---|---|
| 6 | - | + |
| 5 | + | - |
| 2 - 1 | ON → OFF | OFF → ON |
[RH]
POWER CHILD LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Child Lock | Child Unlock |
|---|---|---|
| 3 | - | + |
| 4 | + | - |
| 7 - 8 | ON → OFF | OFF → ON |
[Dead Lock]
[LH]
DEAD LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Function | |
|---|---|---|
| Dead Lock | Dead Unlock | |
| 8 | - | + |
| 7 | - | + |
| 5 | + | - |
[RH]
DEAD LOCK - TERMINAL FUNCTION DESCRIPTION
| Terminal | Function | |
|---|---|---|
| Dead Lock | Dead Unlock | |
| 1 | - | + |
| 2 | - | + |
| 4 | + | - |
