Removal & Installation: Removal

Align the steering wheel straight.
Disconnect the battery negative (-) terminal and the service interlock connector.
(Refer to REMOVAL & INSTALLATION - 2WD

(Refer to REMOVAL & INSTALLATION - 4WD
Secure the steering wheel to prevent movement.
Remove the driver airbag module.
(Refer to Restraint (Airbag(Event #1)) - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

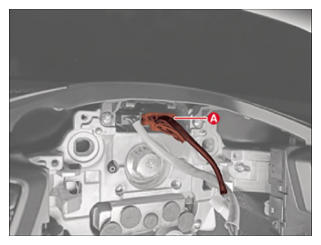

Disconnect the steering wheel connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

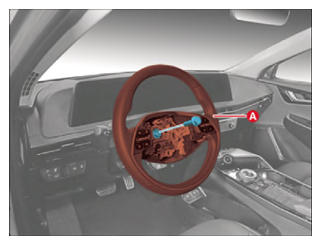

Remove the steering wheel (A) after removing the bolt.

Tightening torque:

39.3 - 49.0 N.m (4.0 - 5.0 kgf.m, 29.0 - 36.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Do not use a hammer when removing steering wheel, the steering column may be damaged if using a hammer.
Do not reuse the steering wheel bolt.
