Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

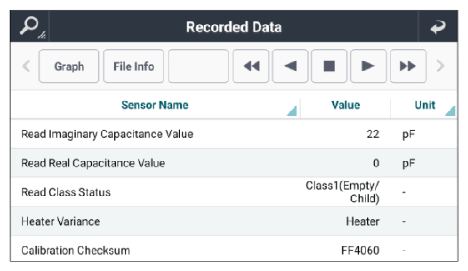

Ignition "ON". No occupant on the passenger seat	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS.	Fig.1 to 2

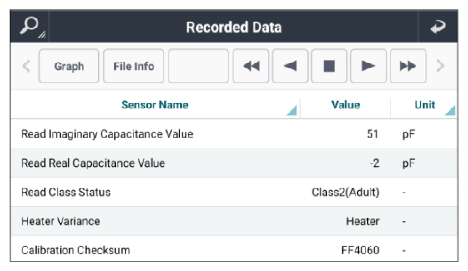

Ignition "ON". Occupant on the passenger seat		Fig.1 to 2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Check module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "BODY SENSOR RESET " and "Verification of Repair" procedure.

No Good
