Removal & Installation: Installation
WARNING:
- When working on high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or electric leakage.
- When working on high voltage system or related components, make sure that you are familiar and comply with the "Safety Precautions, Cautions and Warnings." See HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION . If you do not comply with the instructions, serious accidents due to electric shock or leakage may occur.
- When working on high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedures.
- Install in the reverse order of removal.NOTE:
- Install the multi inverter assembly with the specified torque.
- If multi inverter assembly is dropped, it may cause internal damage. (Do not reuse)

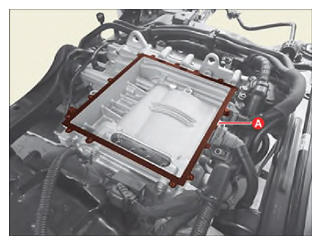

- Replace the gasket (A) and check the installation before installing the multi inverter assembly.
- Perform the PE system leak test procedure before installing the multi-inverter assembly in the vehicle.
- Perform the PE system leak test by using the KDS.
(Refer to High Voltage Distributing System - "REAR HIGH VOLTAGE JUNCTION BOX ")

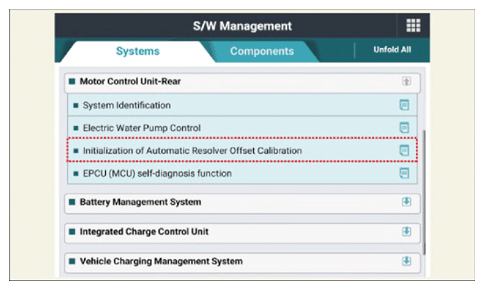

- Perform the Initialization of Automatic Resolver Offset Calibration procedures with the KDS.
